REPLACEMENT AND ADJUSTMENT
B660 12
SM

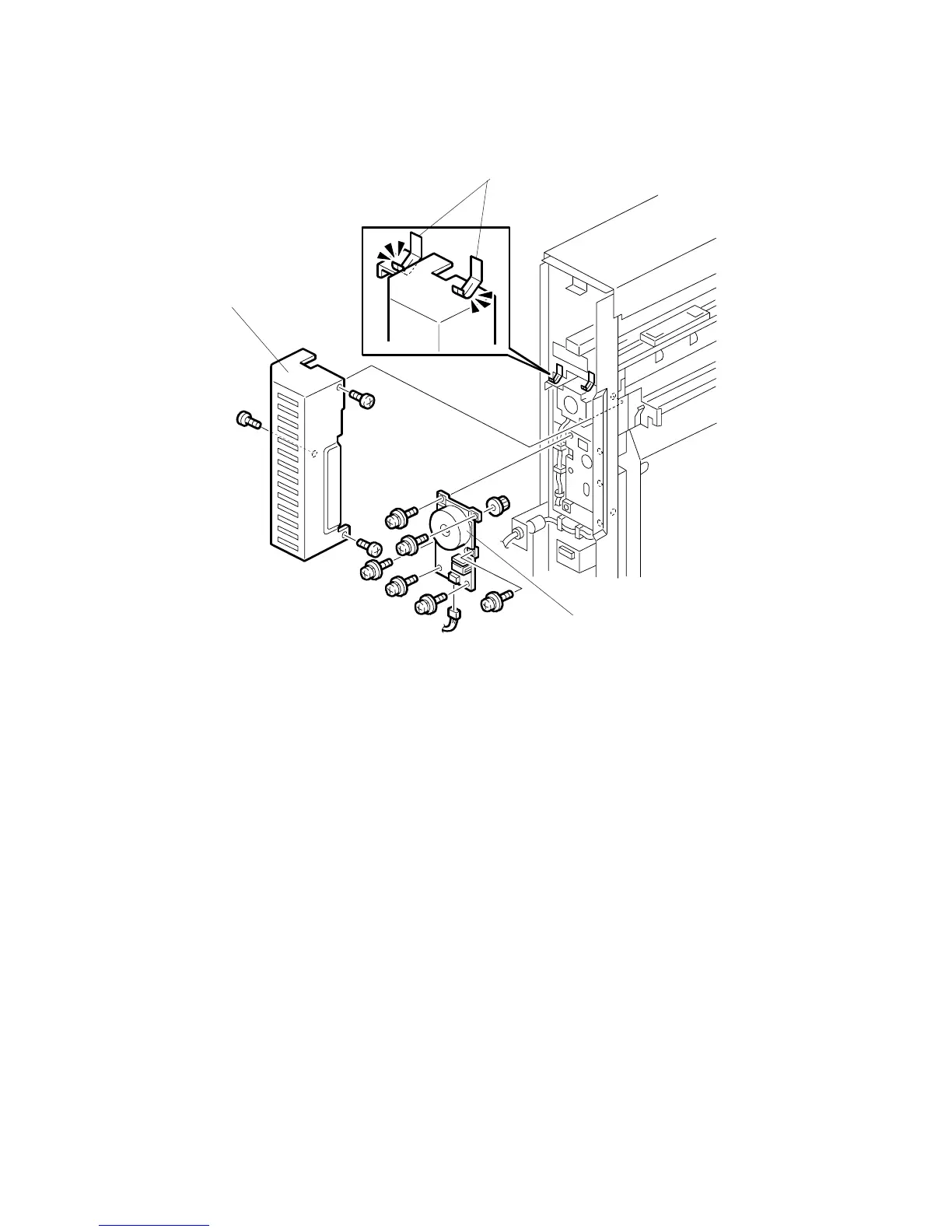

3.10 FOLD ROLLER MOTOR
1.
Pull the Z-folding mechanism
out of the unit, but not fully.
2. Remove:
(
3.2)
•
Left cover
•
Right cover
•
Back cover
[A]:
Motor cover (
x 3)
[B]: Fold
roller
motor
(
x 6,
x 1, timing belt x 1)
Reinstallation
Make sure that the motor cover
is below the leaf springs [C].
B660R1
10.WMF
[A]
[B]
[C]
1005
1007
