IMAGE TRANSFER AND PAPER SEPARATION
B064 Series/B140 Series/G126 6-80 SM

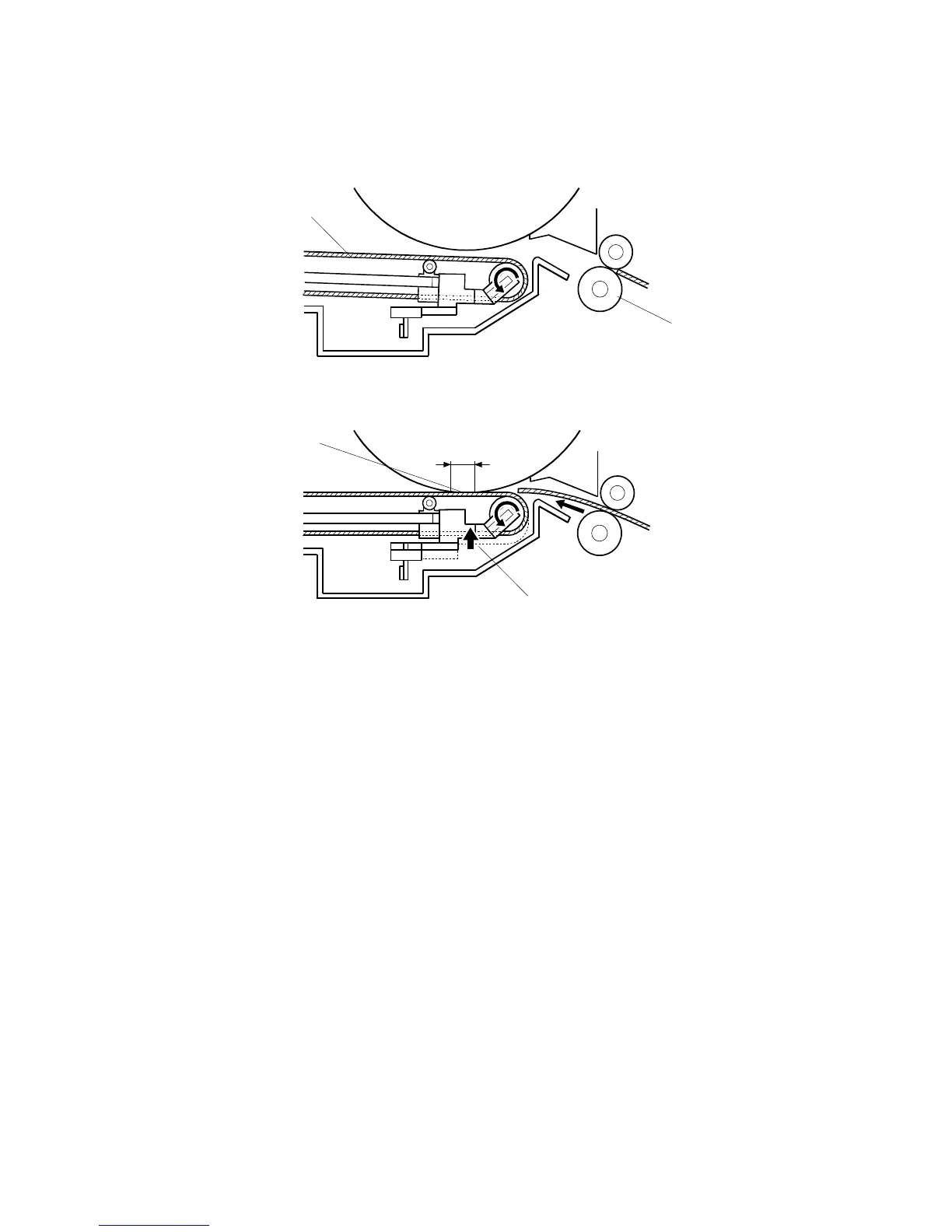

Timing
[A]: Registration roller
[B]: Transfer belt
[C]: OPC drum
[D]: Front and back levers
[E]: Nip width (about 8 mm)
The transfer belt stays away from the OPC drum until 500 ms after the drum motor
starts. Then the transfer belt lift solenoid switches on to lift the belt.
At the end of the job, the solenoid switches off, and the transfer belt unit lowers
away from the drum.
B140D961.WMF
B140D962.WMF
[A]
[B]
[D]
[E]
8 mm
[C]
