PAPER FEED
B064/B140 Series/G126 3-110 SM
3.11.13 BY-PASS SEPARATION ROLLER PRESSURE
ADJUSTMENT
1. Loosen the separation roller gear [A].
The position of the drive gear for the separation roller can be changed in order
to change the amount of pressure exerted by the separation roller. This
adjustment can be done:
• When feeding special paper, especially thick paper
• When the customer experiences feed problems
NOTE: The separation roller gear is positioned at the groove before shipping.
2. Move the separation roller gear right to increase the pressure to correct
misfeeds.

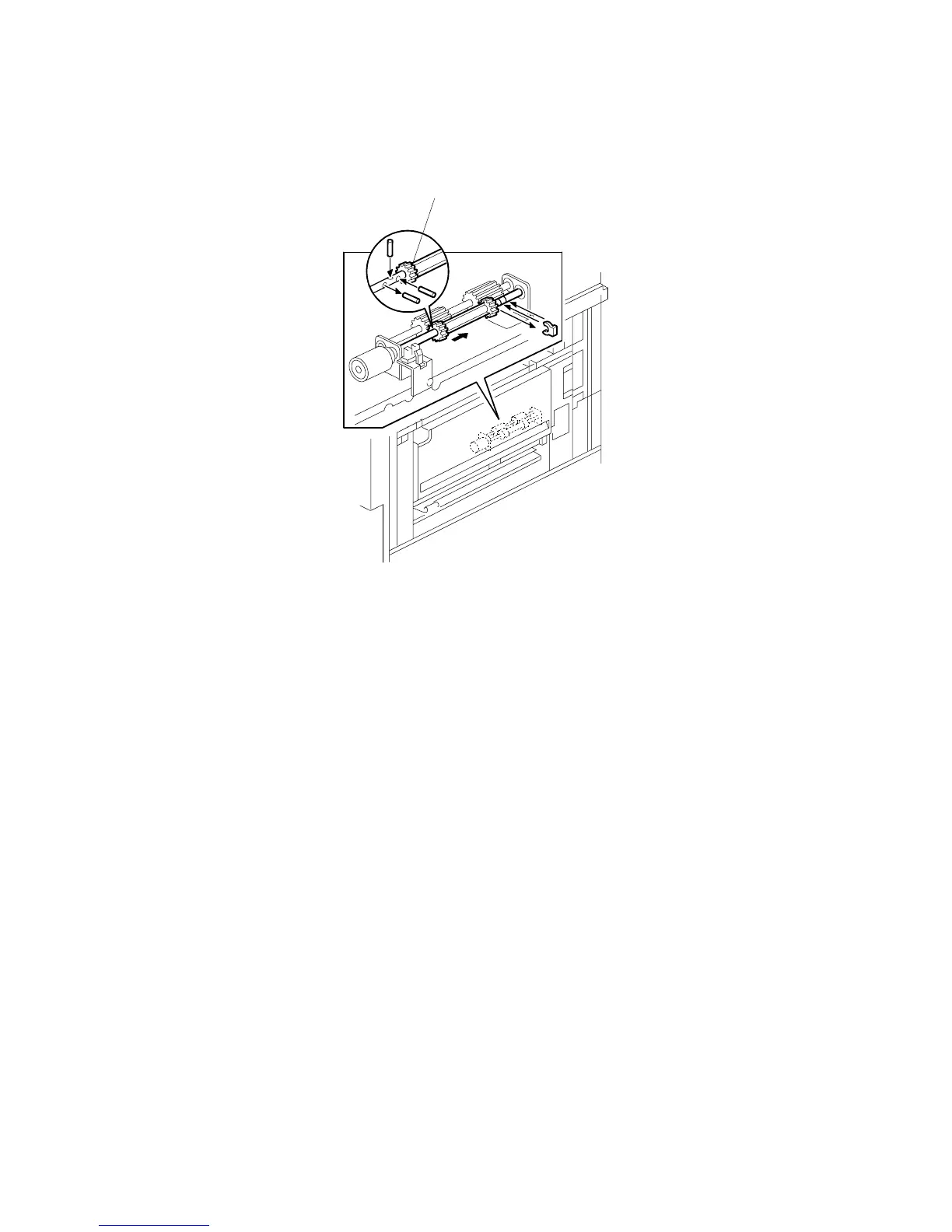

B140R847.WMF
[A]
