Ricoh 4051 Service Manual

OPERATION PANEL AND EXTERNAL COVERS
B064 Series/B140 Series/G126 3-8 SM

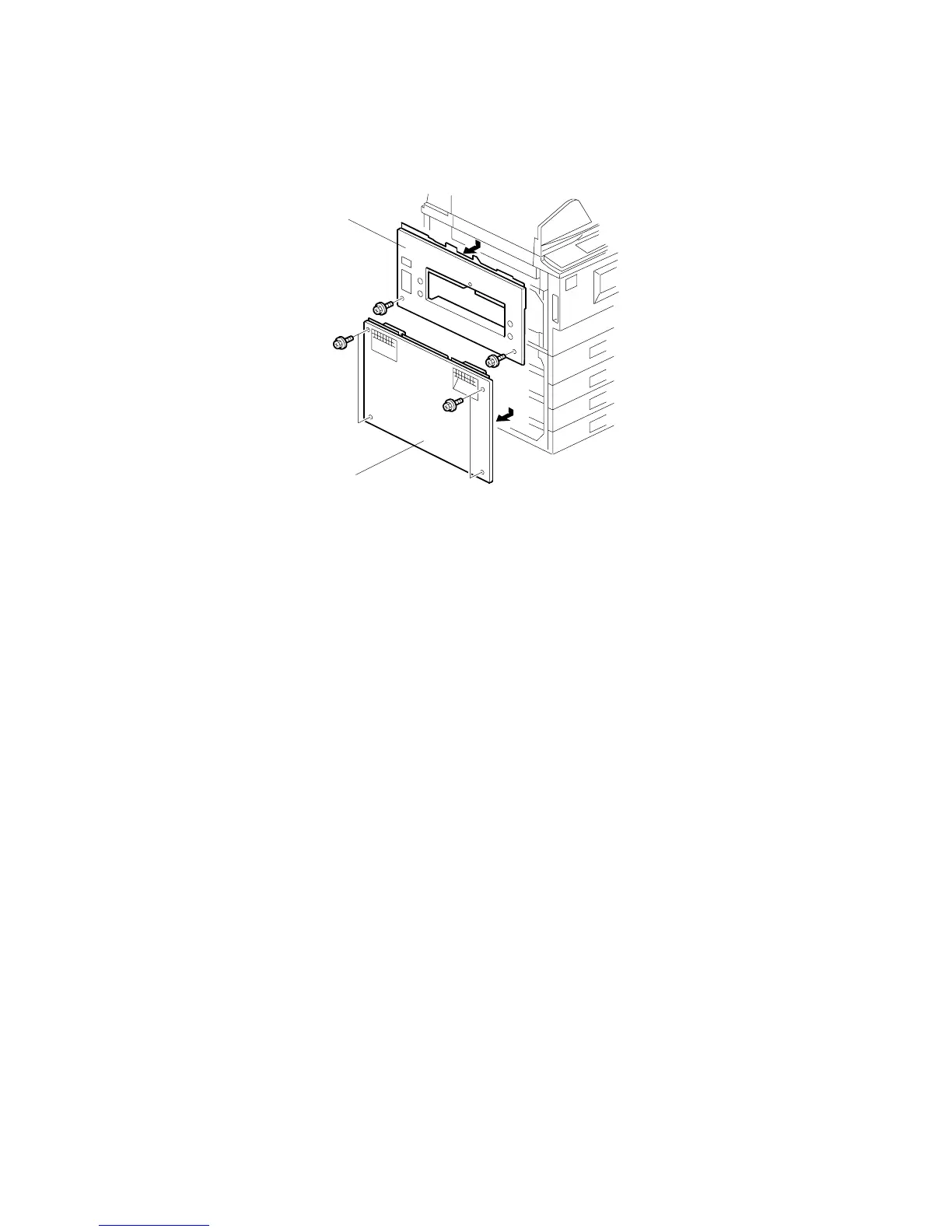

3.3.4 LEFT COVERS
[A]: Left upper cover ( x 2)
• Slide down to remove.
• When re-attaching, before tightening the screws make sure that 1) the tabs
on the cover are engaged with the grooves on the machine, and 2) the
catches on the cover are engaged with the shoulder screws.
[B]: Left lower cover ( x 2)
• Slide down to remove.
• When re-attaching, before tightening the screws make sure that the tabs on
the cover are engaged with the grooves on the machine.
B140R903.WMF
[A]
[B]

Ricoh 4051 Specifications

General

Brand	Ricoh
Model	4051
Category	All in One Printer
Language	English
