PCBS AND HDD
SM
3-121
B064 Series/B140 Series/G126
Replac
ement
Adjustment

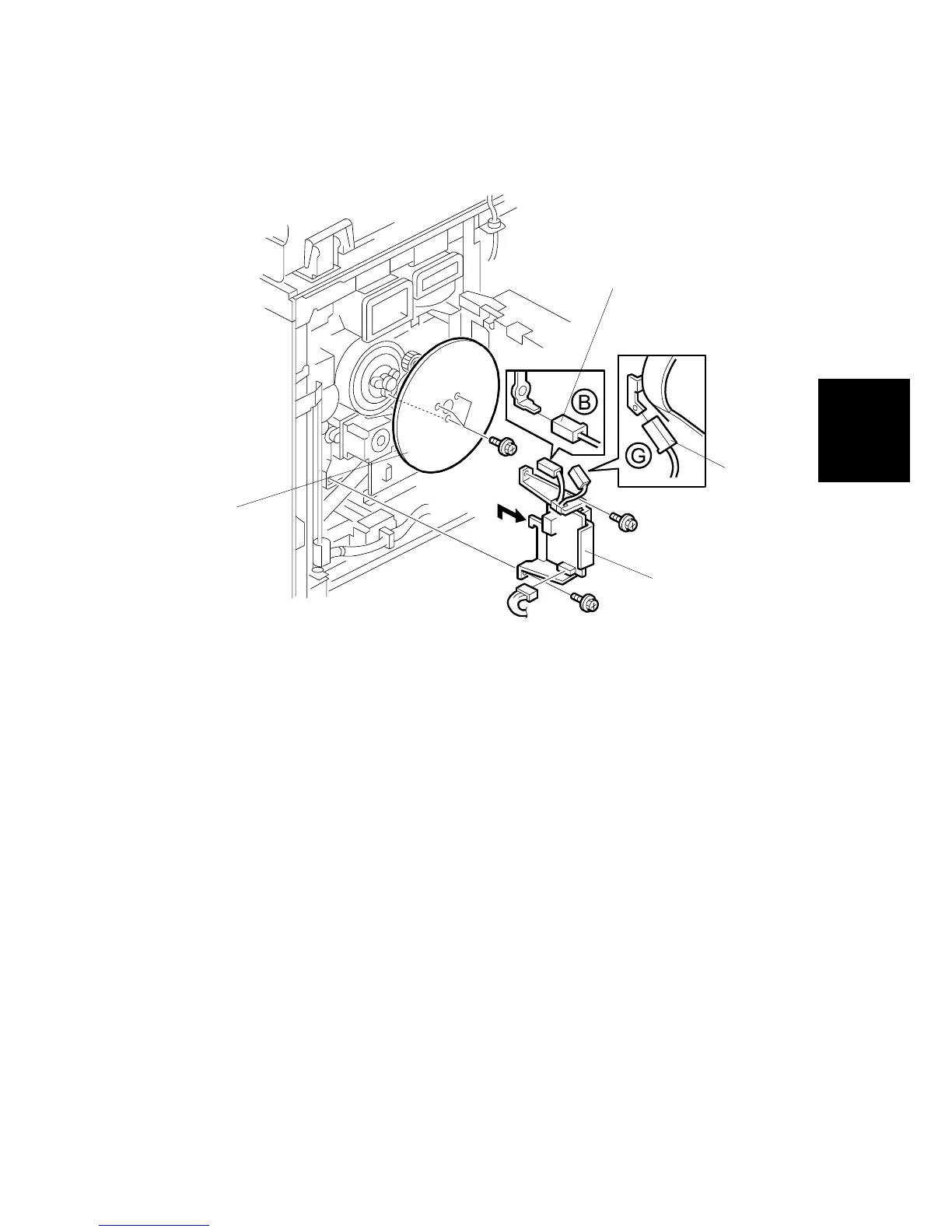

3.12.4 DEVELOPMENT
POWER
PACK
Rear upper cover (
3.3.5)
[A]: Flywheel
(
x 3)
[B]:
Development power pack (
x 2,
x 3)
NOTE:
Mark the bayonet connectors [C], [D] wit
h a felt pen to ensure that they are
not connected incorrectly when the power pack is re-connected.
B140R861.
W
MF
[B]
[C]
[D]
[A]
294
296
