PCBS AND HDD
SM
3-117
B064 Series/B140 Series/G126
Replac
ement
Adjustment

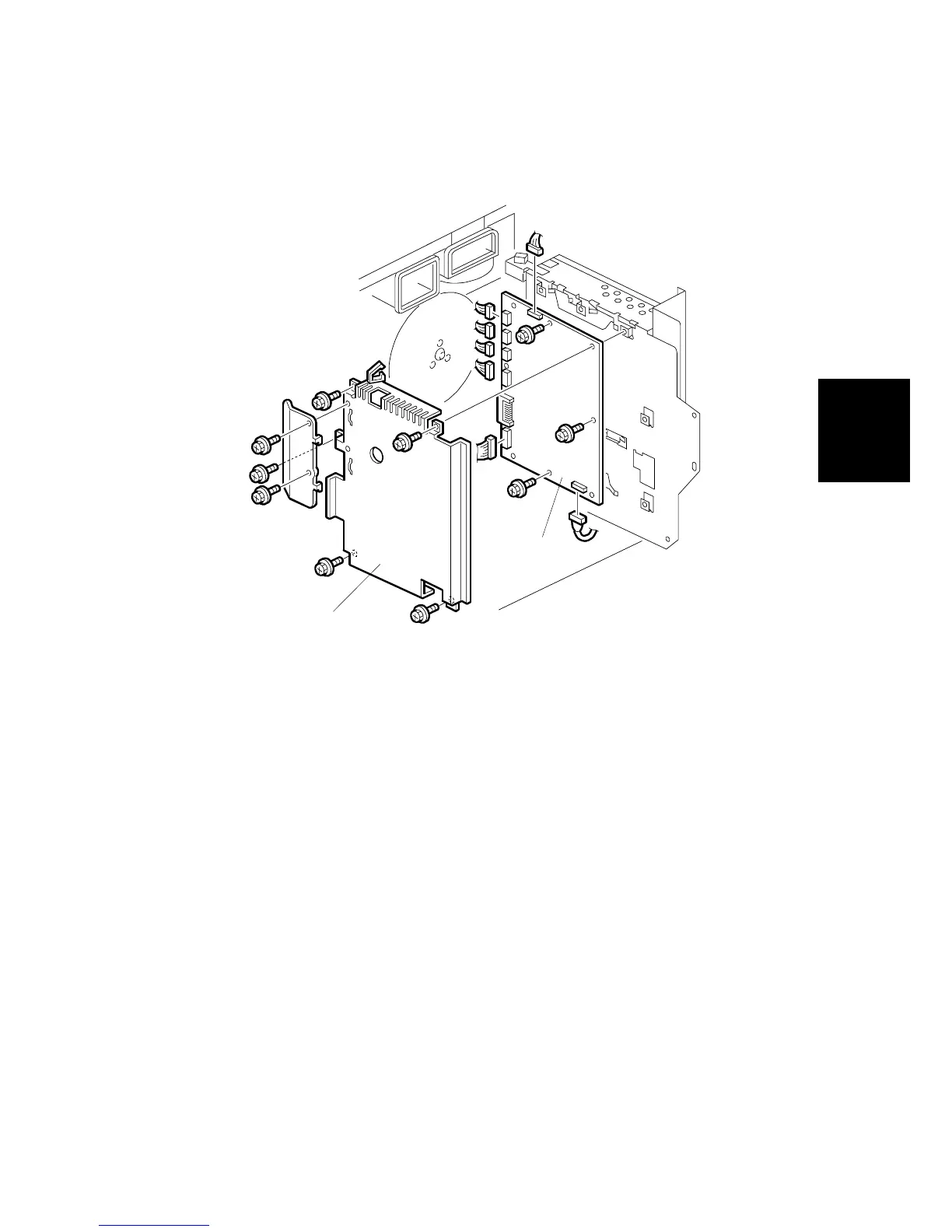

3.12.3 IPU
BOARD
B064 Series: IPU Board
Rear upper cover (
3.3.5)
Swing-out the PCB unit (
3.12.2)
[A]:
PCB unit cover (
x 7)
[B]:
IPU board (
x 3,
x 7)
B140R857.W
MF
[A]
[B]
290
292
