REPLACEMENT AND ADJUSTMENT
SM 5 B706
3000-Sheet
Finisher
B706

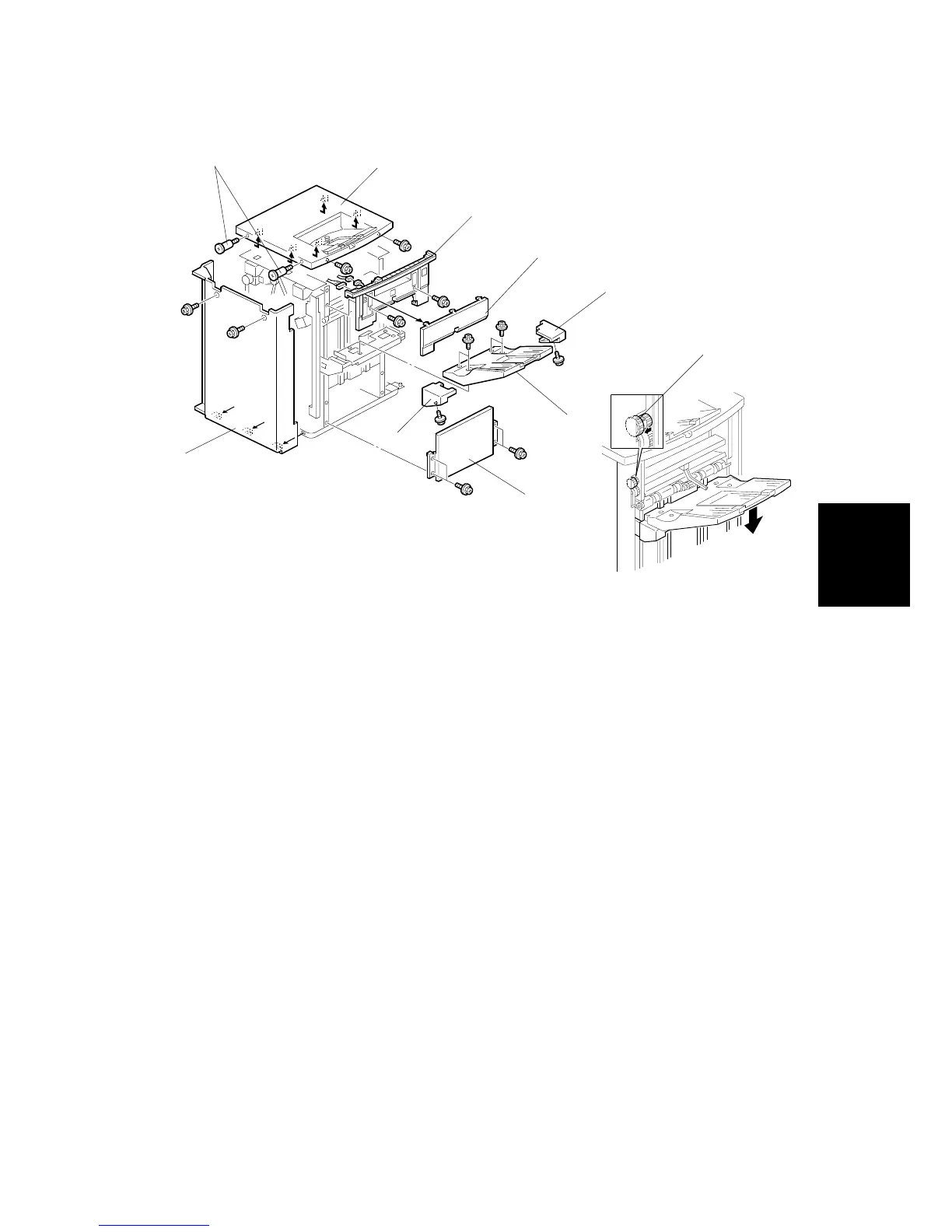

Left Covers
1. Remove the left upper panel [A].
2. Remove the left upper cover [B] ( x 2, x 2).
3. Remove the door and left inner cover. (See “Front Door and Left Inner Cover
Replacement”.)
4. Remove the rear cover [F] ( x 2).
5. Remove the left lower cover [C] ( x 4).
Rear Cover and Top Cover
1. Remove the upper tray. (See “Side Table and Upper Tray”.)
2. Remove the step screws [D] ( x 2).
3. Remove the top cover [E] ( x 2). Slide to the right to remove.
4. Remove the rear cover [F] ( x 2).
Shift Tray
1. If you need to lower the shift tray, support the bottom of the tray with your hand,
then pull the gear toward you [G] to release the tray and lower it.
2. Remove the shift tray [H] ( x 4).
3. Remove the shift tray rear cover [I] and front cover [J] ( x 1 each).
B706R504.WMF
B706R501.WMF
[E]
[G]
[A]
[B]
[C]
[F]
[H]
[I]
[J]
[D]
To Next Page
