MFP OPTIONS: B140 SERIES
B064 Series/B140 Series/G126 1-108 SM
1.17.4 USB 2.0 INTERFACE BOARD (B596-01)
ACCESSORY CHECK
Check the accessories and their quantities against this list:
Description Q’ty
1. USB 2.0 Interface Board........................................................ 1
Installation
You can only install one of these cards, because only one PCI slot (B1) is available
for these options:
• USB 2.0
• IEEE 802.11b (Wireless LAN)
• IEEE 1394 (FireWire)
• Bluetooth Interface Unit G377
If a different card is installed in B1, you must remove it before you install USB 2.0
Interface Board.
1. Turn the machine off.
2. Remove the cover of Slot B1 ( x 2).
3. Install the USB 2.0 interface board [A] in Slot B1 and attach it with the screws.
4. Print a configuration page to make sure that the machine can see the USB
interface board.
User Tools > Printer Features > List Test Print > Configuration Page

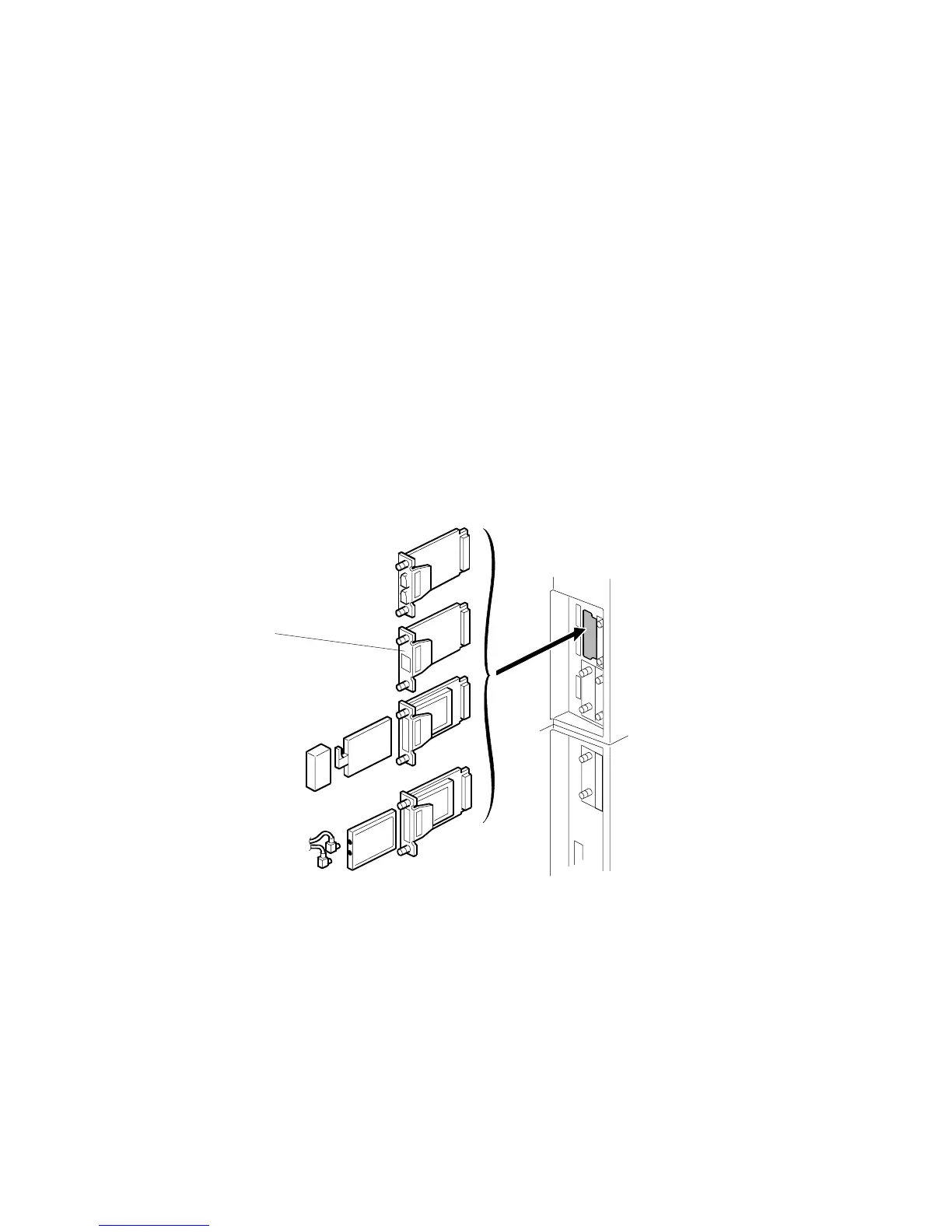

B659I108.WMF
