MFP OPTIONS: B140 SERIES
SM
1-113
B064 Series/B140 Series/G126
Installation
1.17.8
FILE FORMAT CONVERTER (B609)
ACCESSORY CHECK
Check the accessories and their quantities against this list:
Description
Q’ty
1.
File Format Converter (ML
B: Media Link
Board)
...................
1
Installation
1.
Turn the machine off.
2.
Remove the cover of Slot B2 (
x 2).
3.

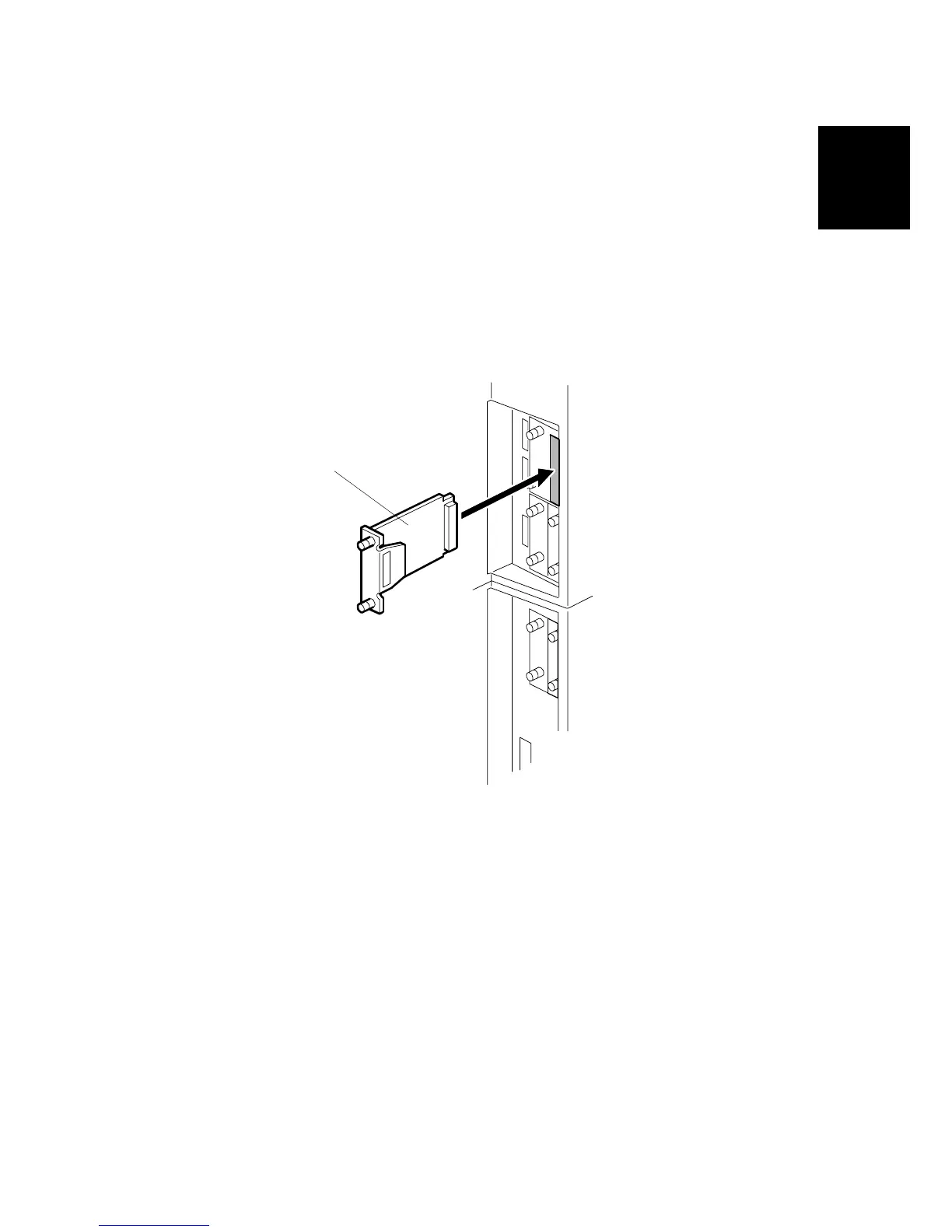

Install the file format converter board [A]
in S
lot B2 and attach it with the screws.
B659I109.
WMF
[A]
146
148
