MAIN MACHINE (G126)
B064 Series/B140 Series/G126 1-120 SM

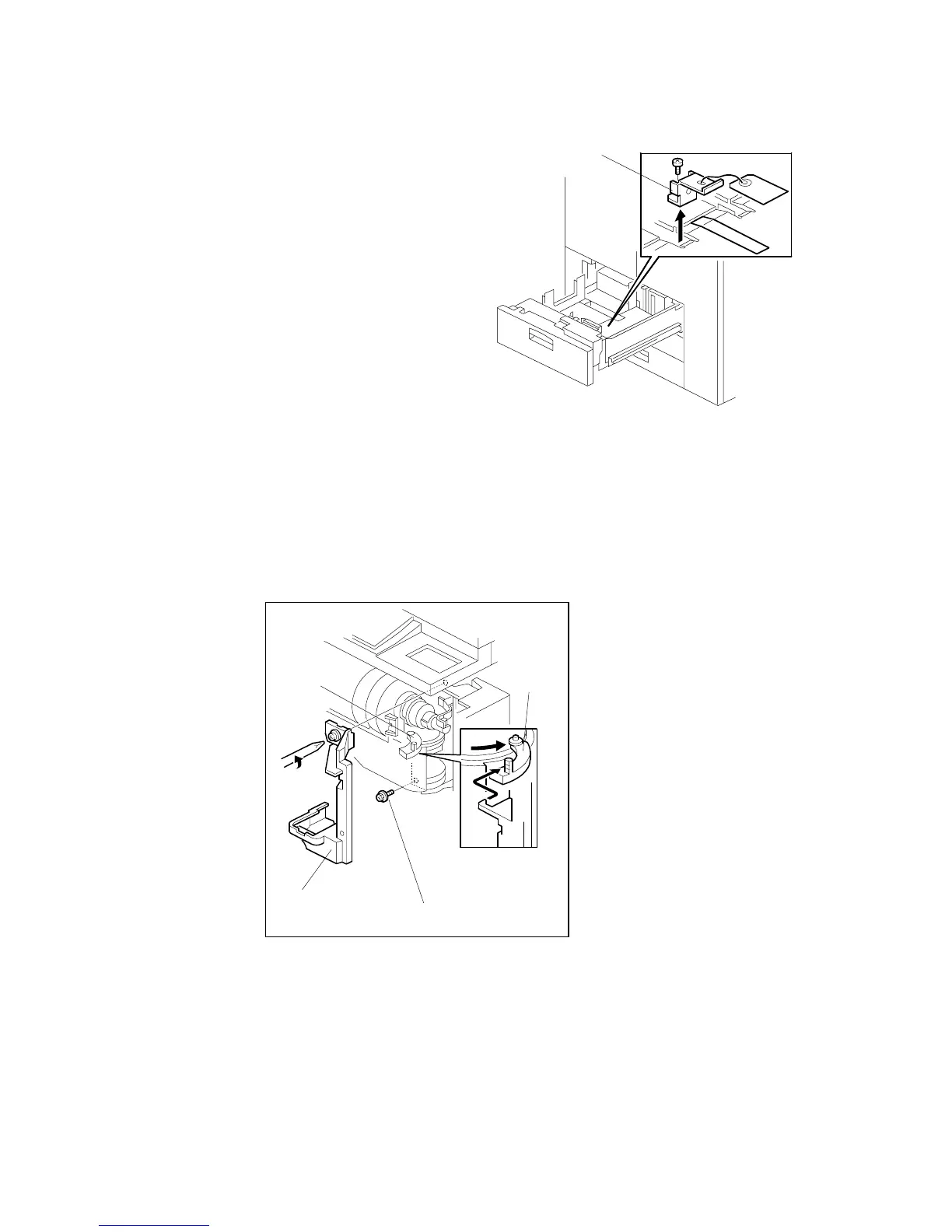

11. Open the tandem tray (top paper
tray) and remove the metal retainer
bracket [D] (1 screw), wire, and red
tag.
Removing and Filling the Development Unit
IMPORTANT: Before you begin, remove the toner bottle if it is installed.
Note: If the toner bottle is in the machine when you do this procedure, the toner
bottle holder can be damaged.
1. Remove the shutter cover [A] of the toner supply unit (1 screw).
2. Remove the lock screw [B] from the toner bottle open/close bracket.
3. Remove the shipping tape [C] if it is still there.
4. Pull the toner bottle holder and swing it to the right.
B064I401.WMF
[D]
[B]
[A]
[C]
[D]
Rev. 05/2005
