DUPLEX UNIT
B064/B140 Series/G126
3-90
SM

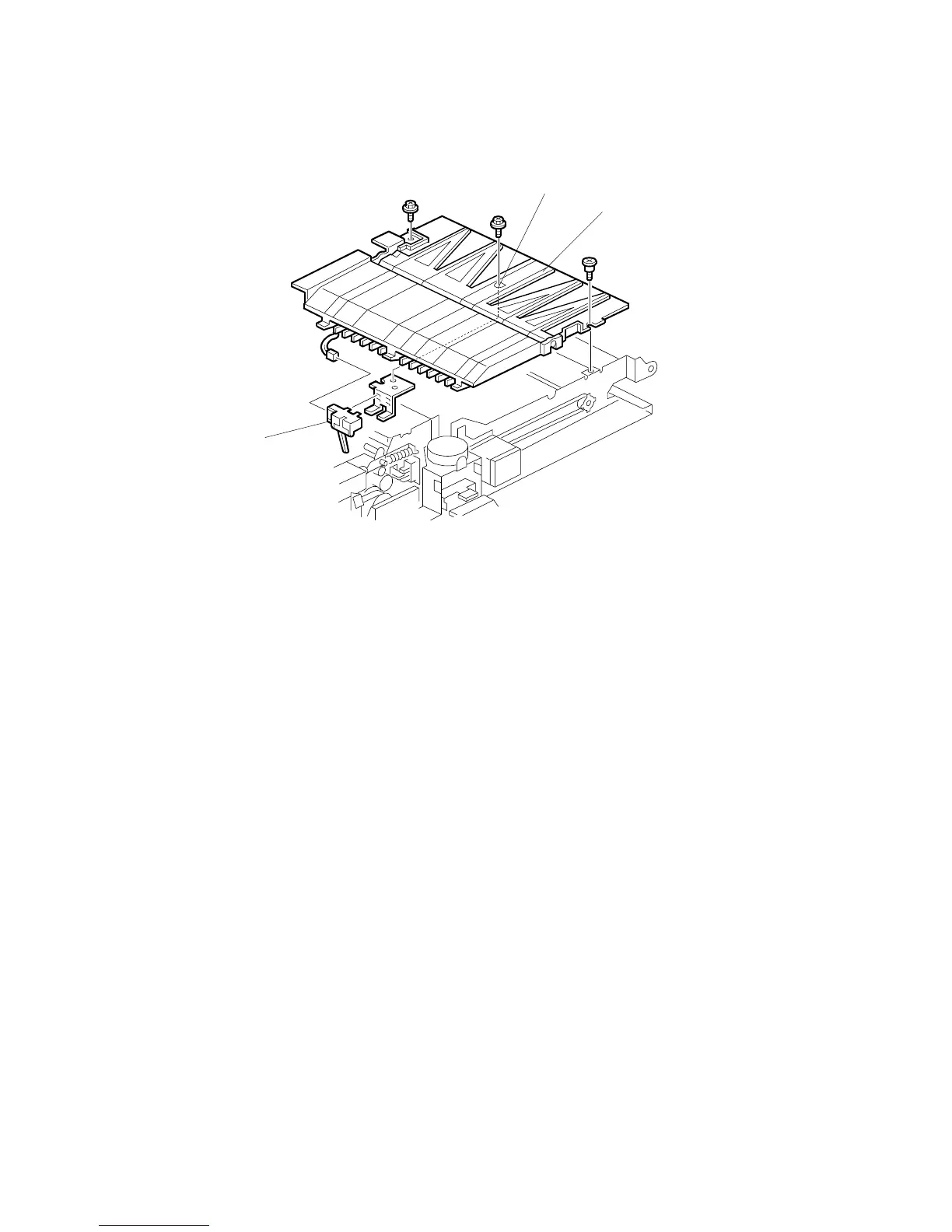

3.10.7
DUPLEX TRANSPORT SENSOR 3
[A]:
Right half of table (
x 2,
x 1)
•
The front screw is a shoulder screw. In
sert the screws in the correct holes
when re-attaching.
[B]:
Remove the screw in the center of
the table to release the sensor bracket
below.
[C]:
Transport sensor 3 (
x 1)
B140R816.
W
MF
[A]
[B]
[C]
263
265
