PUNCH UNIT (B531/A812)
SM 1-69 B064 Series/B140 Series/G126
Installation
1.13 PUNCH UNIT (B531/A812)
The Punch Unit B531/A812 is installed in the 3000-Sheet Finisher B478/B706.
1.13.1 ACCESSORY CHECK

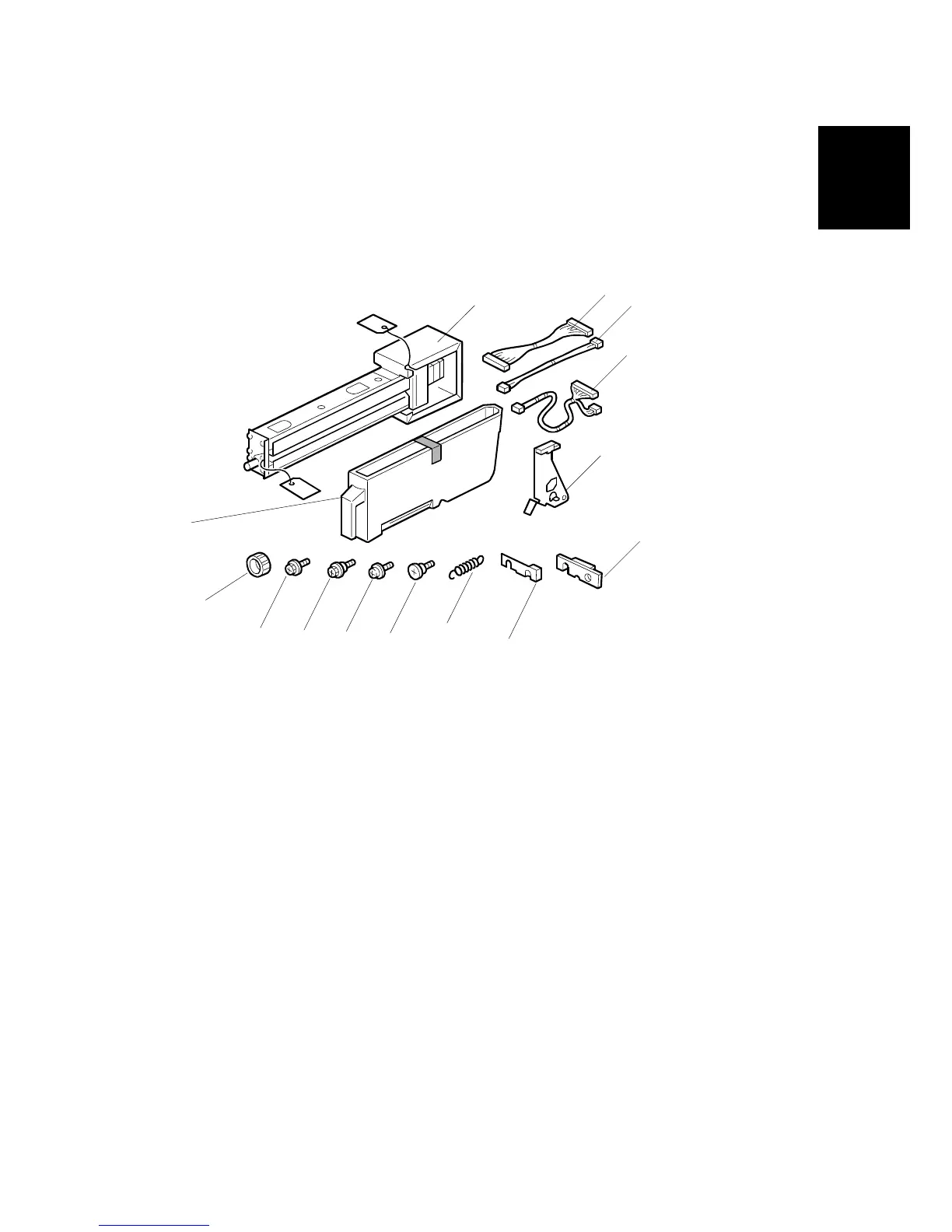

Check the accessories and their quantities against this list:
Description Q’ty
1. Punch unit.............................................................................. 1
2. Harness Connector Cable - PCB ........................................... 1
3. Harness Connector Cable - HP Sensor 2 .............................. 1
4. Harness Connector Cable - HP Sensor 1, Hopper Full.......... 1
5. Sensor Arm and Sensor ........................................................ 1
6. Spacer (2 mm) ....................................................................... 1
7. Spacer (1 mm) ....................................................................... 2
8. Spring .................................................................................... 1
9. Step Screw (large) (M4 x 11)................................................. 1
10. Tapping Screw (M4 x 10)....................................................... 2
11. Step Screw (small) (M3 x 4)................................................... 1
12. Machine Screw, Washer (M4 x 6).......................................... 1
13. Knob ...................................................................................... 1
14. Punch Waste Hopper............................................................. 1
B531I001.WMF
10
1
2
7
3
4
5
6
8
9
11
12
13
14
To Next Page
