REPLACEMENT AND ADJUSTMENT
SM 3 B660
Z-Folding Unit
B660
3. REPLACEMENT AND ADJUSTMENT
3.1 BEFORE YOU BEGIN
1. Disengage the Z-folding unit from the machine.
2. Disengage the Z-folding unit from the finisher (or cover sheet feeder).

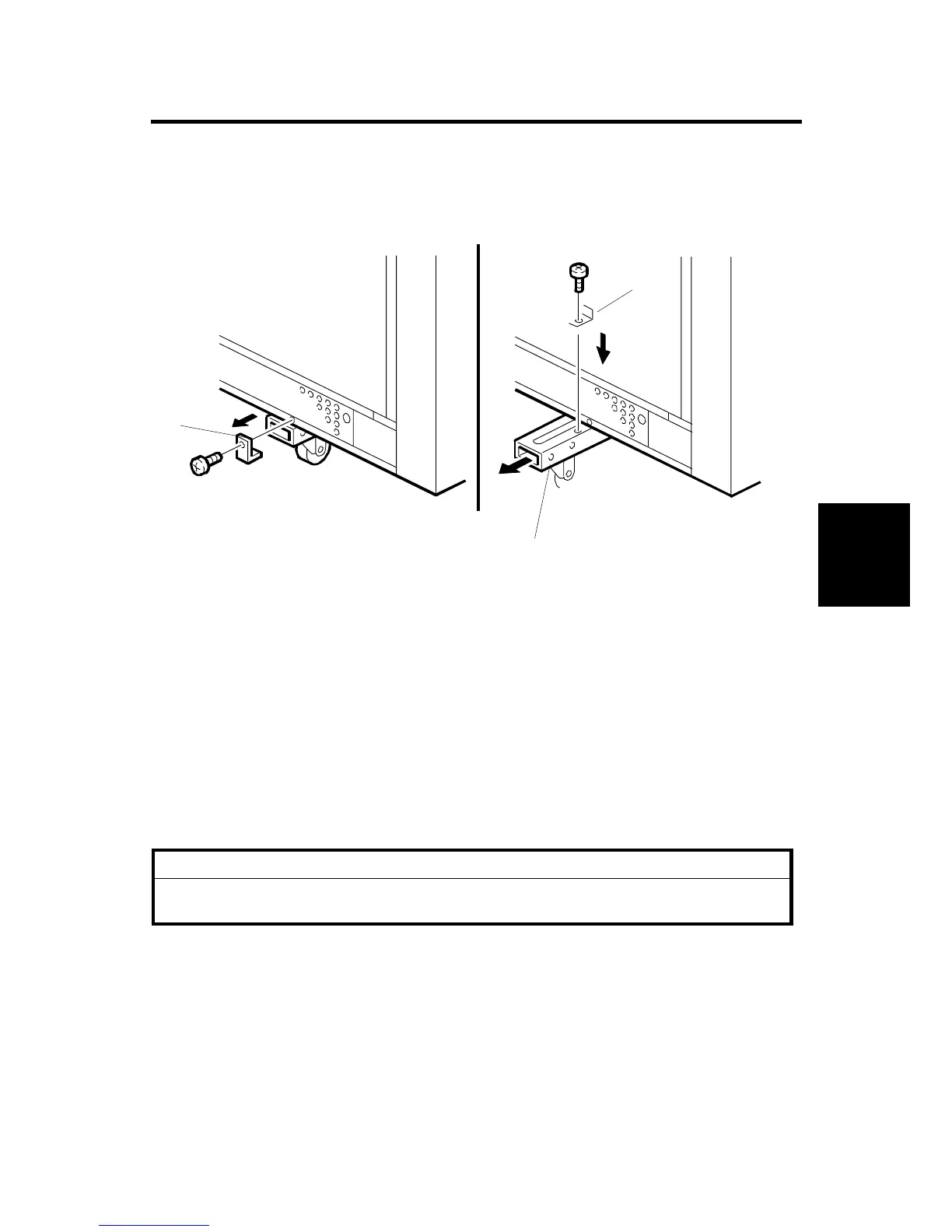

3. At the bottom on the sides of the Z-folding unit:
• Remove the lock bracket [A] ( x 1).
• Pull out the foot extension [B].
• Re-attach the bracket [A] to lock the foot in the open position ( x 1).
Reinstallation
Do this procedure in the opposite sequence to retract and lock the extensions
below the Z-folding unit.
CAUTION
The Z-folding unit is not stable, with or without the feet extended. Do your
work carefully; do not tilt the unit.
B660I900.WMF
[A]
[B]
[A]
