FUSING UNIT

B064/B140 Series/G126 3-66 SM

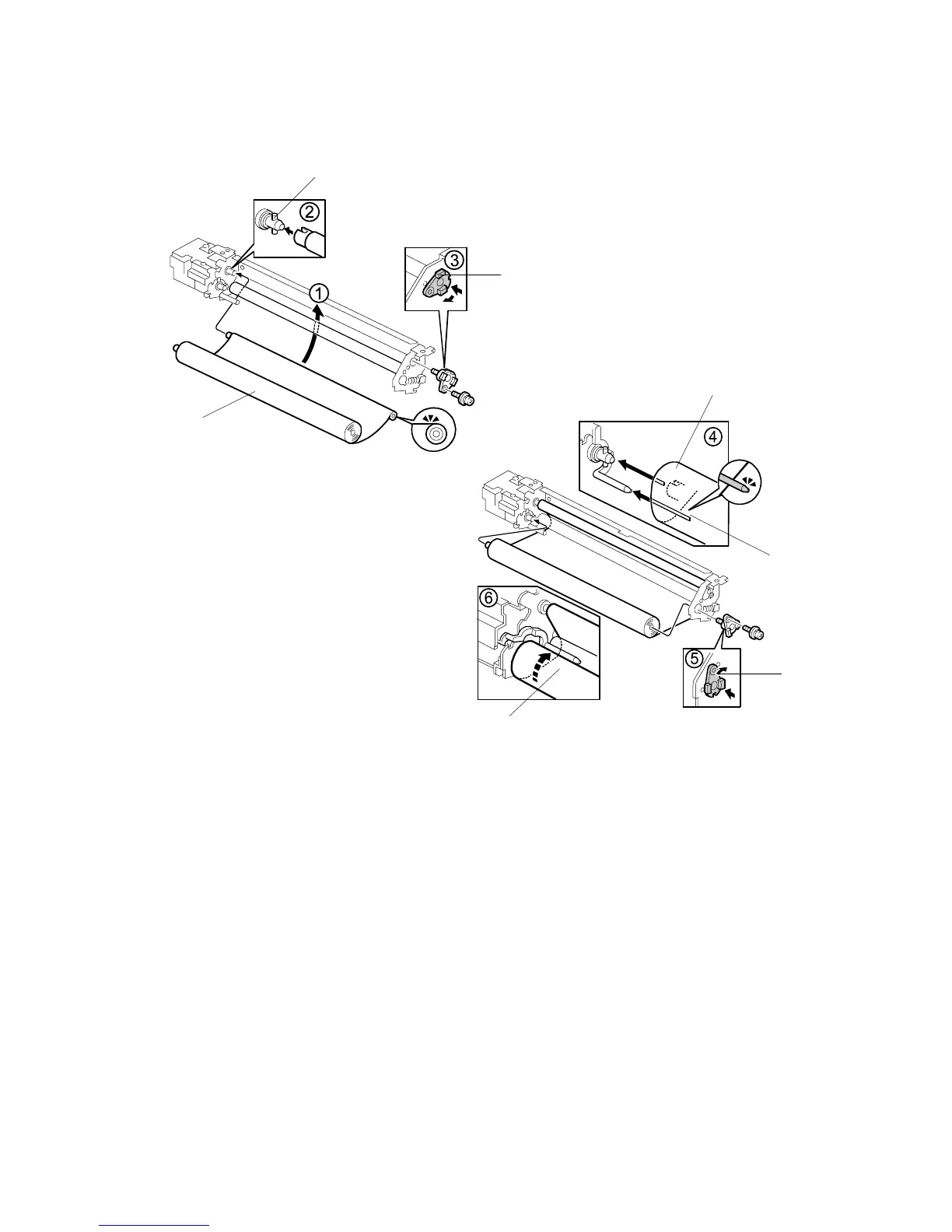

Web Unit Assembly

1. Attach the cleaning roller [A]

• Insert the end of the web into the slot .

2. Insert the drive pins [B] into the web shaft ().

3. After installing bushing 1 [C], rotate the shaft right to lock it, then attach the lock

screw ().

4. Set the web [D] under the feeler [E] of the web end sensor ().

5. Attach bushing 2 [F] ().

6. Attach the new web roll [G] and wind it tight so no slack remains ().

NOTE: Before reassembling the machine, confirm that 1) there is no slack in

the web roll, 2) the web is below the feeler of the web end sensor.

7. Attach the upper cover.

8. After installing a new web roll, reset SP1902-001 to zero.

B140R986.WMF

B140R987.WMF

[A]

[B]

[C]

[D]

[E]

[F]

[G]
