Ricoh 4051 Service Manual

IMAGE FUSING AND PAPER EXIT
B064 Series/B140 Series/G126 6-126 SM
6.12.10 EXIT JUNCTION GATE

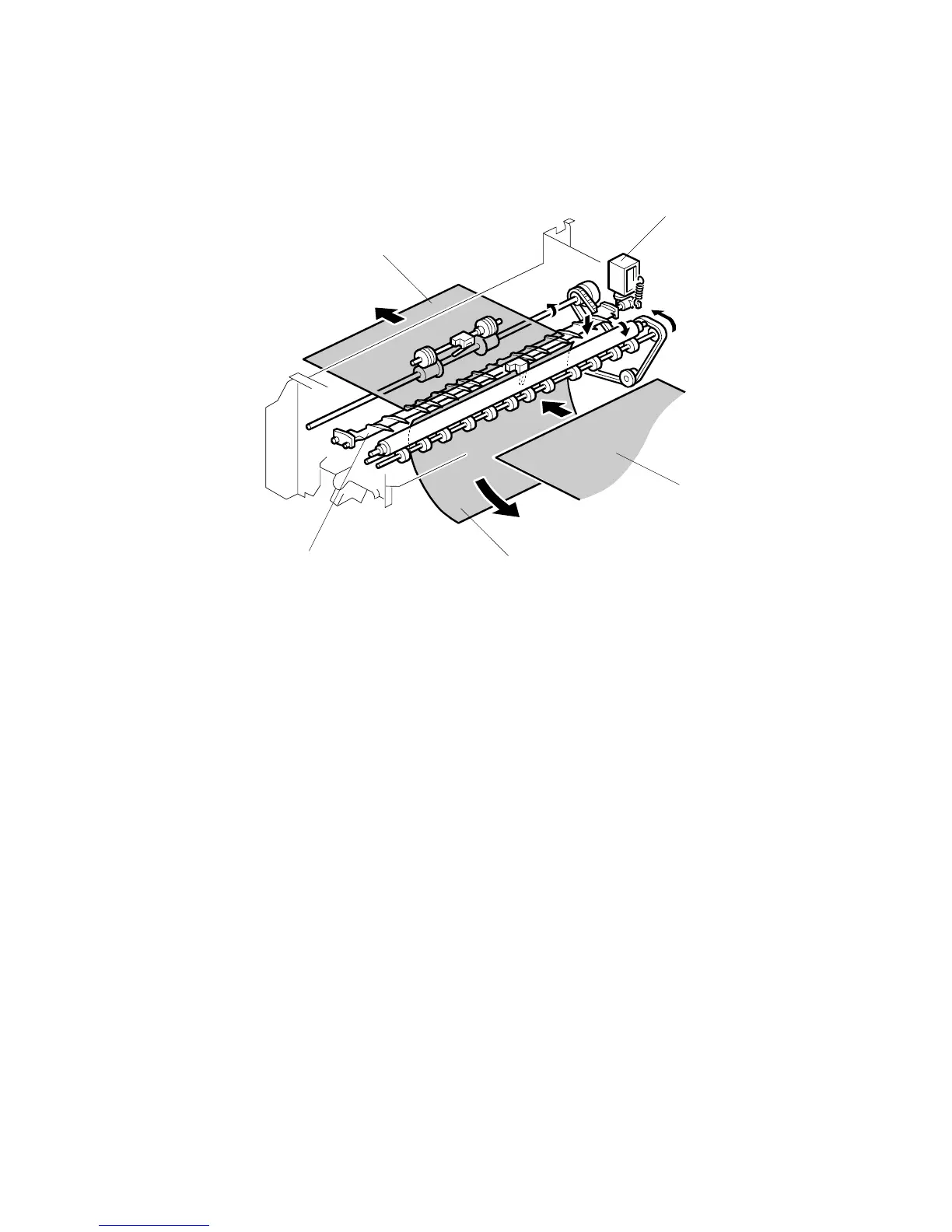

The exit junction gate [A] is controlled by the exit junction gate solenoid [B].
• If the solenoid is on: The gate opens, and paper [C] goes straight through [D]
to the output tray (for face-up delivery) or the finisher.
• If the solenoid is off: The gate remains closed and forces the paper down [E]
to the duplex unit.
B140D9B4.WMF
[A]
[B]
[C]
[D]
[E]
