ETHERNET BOARD
SM 5 G338/G339
Scanner/
Printer Unit
G338/G339
1.3 ETHERNET BOARD

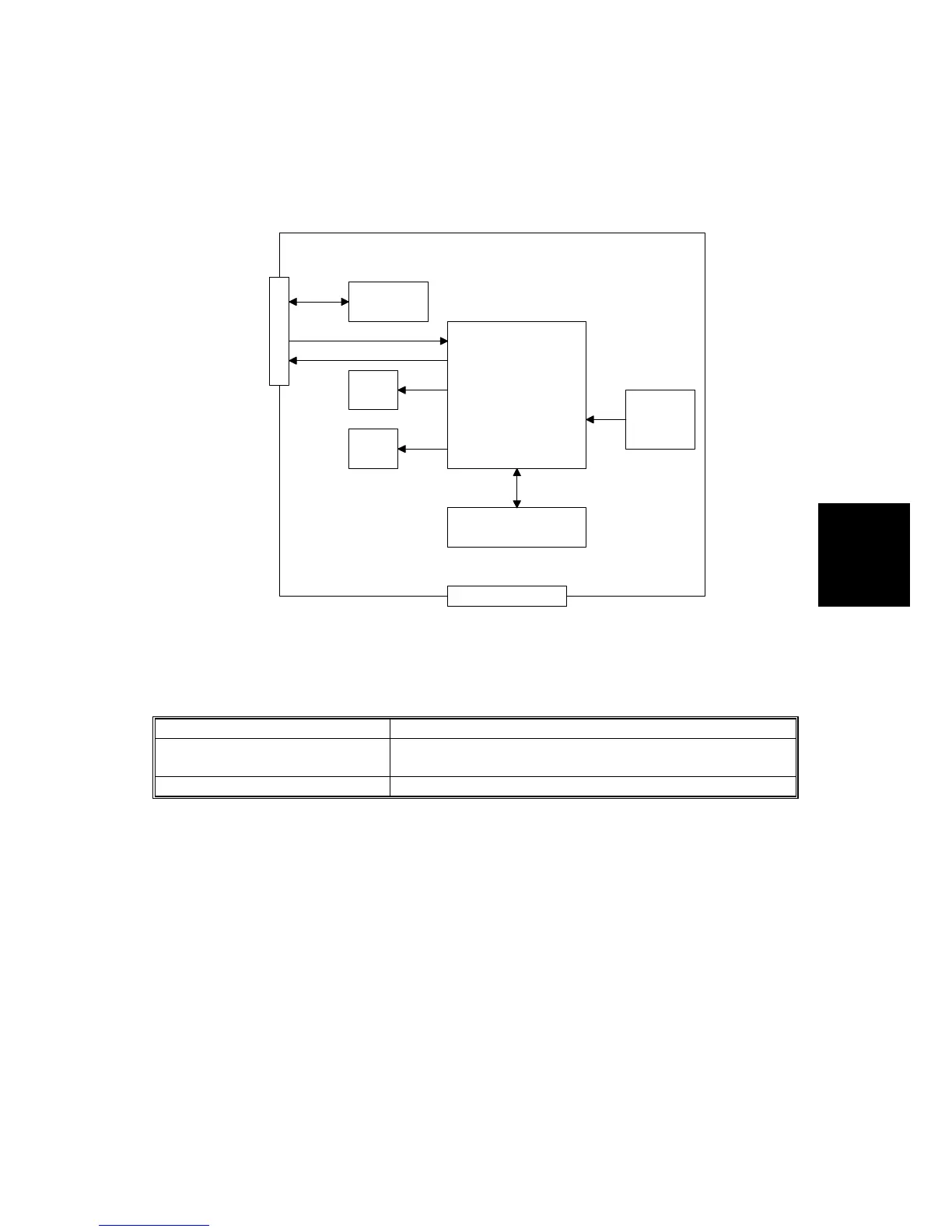

1.3.1 ETHERNET BOARD LAYOUT
The Ethernet board is provided as a standard feature of this machine.
Function Blocks Description
PHY (Physical Layer Device)
Completely standardized physical layer device for the
functions of each device in the network.
EEPROM Stores the MAC address.
The physical layer device, the lowest layer of the OSI reference model, refers to
the physical components of the network: cables, connectors, and so on. OSI, the
Operating Standard Interface, is a framework upon which networking standards are
arranged. It is commonly diagramed as a layered cake.
Connector
GW PHY Bus I/f
EEPROM
LED
LED
PHY DP83843
Filter Modue
Connector
XTL
25 MHz
LAN I/F
G338D002.WMF
To Next Page
