PAPER FEED
SM
6-105
B064 Series/B140 Series/G126
Detailed
Descriptions
6.11.9

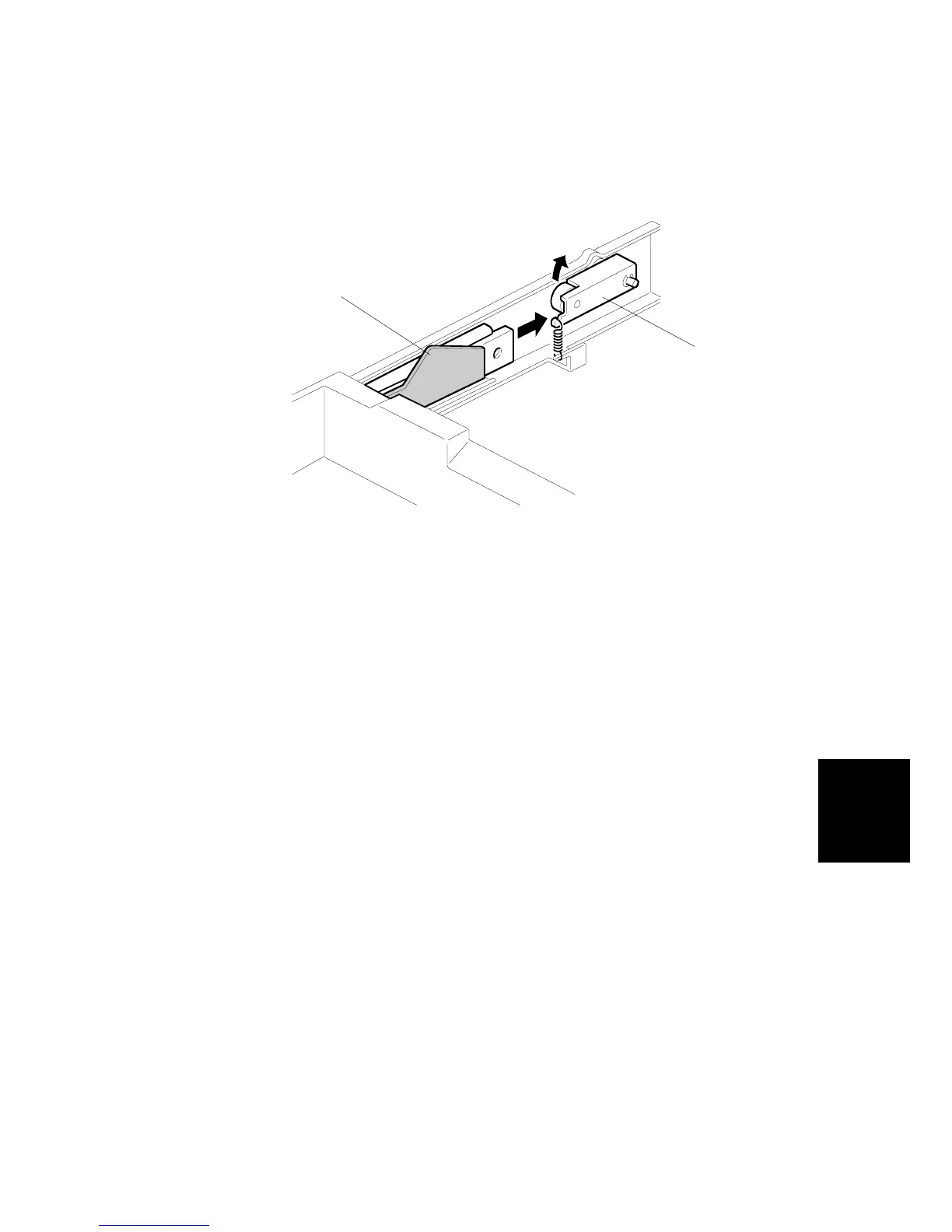

TRAY POSITIONING MECHANISM – TRAYS 1 TO 3
When the tray is placed in the paper feed
unit, the lock lever [A] drops behind the
lock plate [B] on the support bracket to
lock the tray in the proper position.
B140D994.W
MF
[A]
[B]
702
704
