SCANNER
B064 Series/B140 Series/G126 3-14 SM

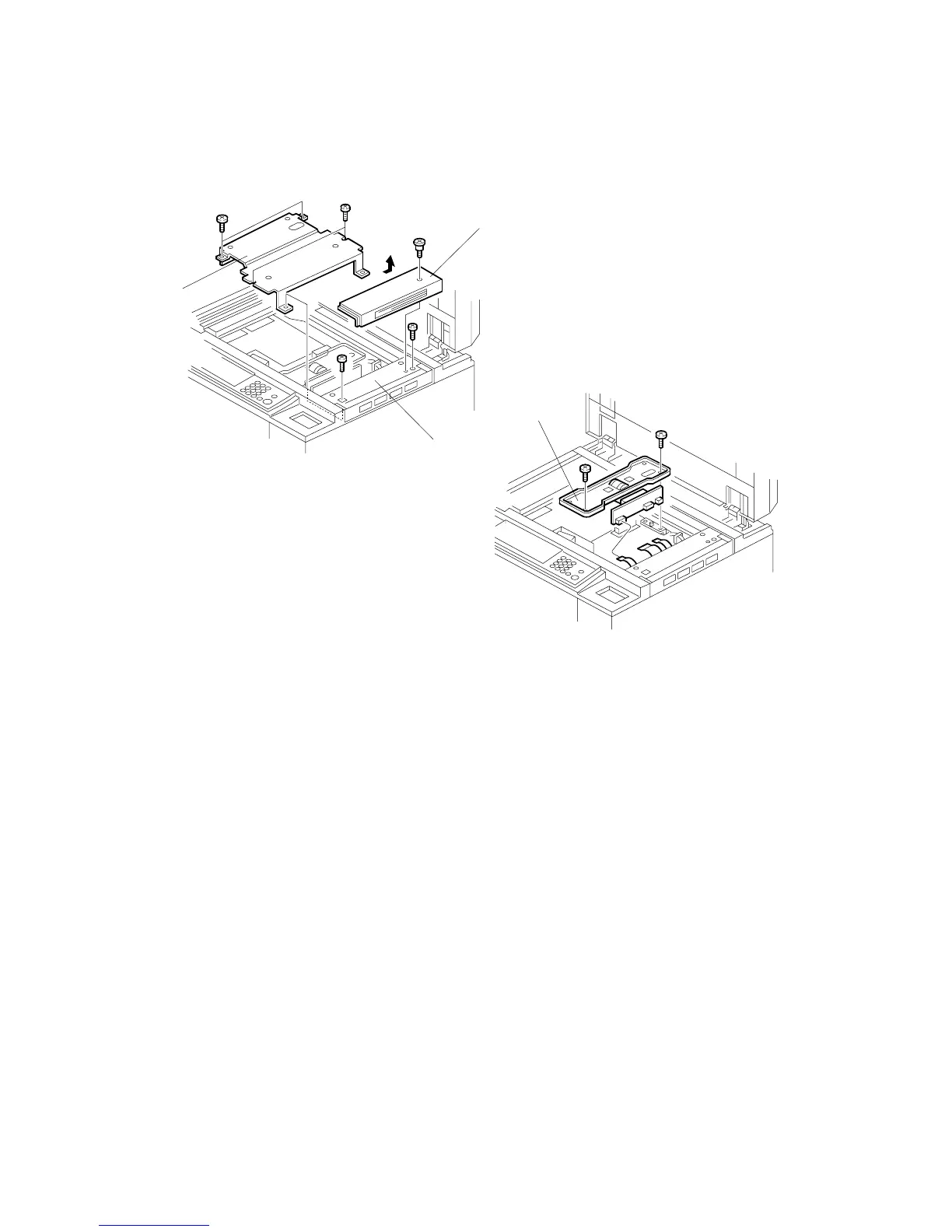

3.4.4 LENS BLOCK
Exposure glass ( 3.4.2)
Operation panel ( x 1) ( 3.3.1)
[A]: Top right cover ( x 1)
[B]: Right upper stay ( x 2)
[C]: Lens cover ( x 2)
[D]: Lens block ( x 2, x 3)
NOTE: To avoid damaging the lens block, never set it down on the side with the
PCB; turn it over with the PCB up.
Re-assemble the machine, then perform the scanner and printer adjustments.
( 3.14)
B140R910.WMF
B140R911.WMF
[A]
[B]
[C]
[D]
To Next Page
