MAIN MACHINE (B064 SERIES/B140 SERIES)
SM 1-11 B064 Series/B140 Series/G126
Installation
Removing and Filling the Development Unit
IMPORTANT: Before you begin, remove the toner bottle if it is installed. Note, if
the toner bottle is in the machine when you do this procedure, the
toner bottle holder can be damaged.

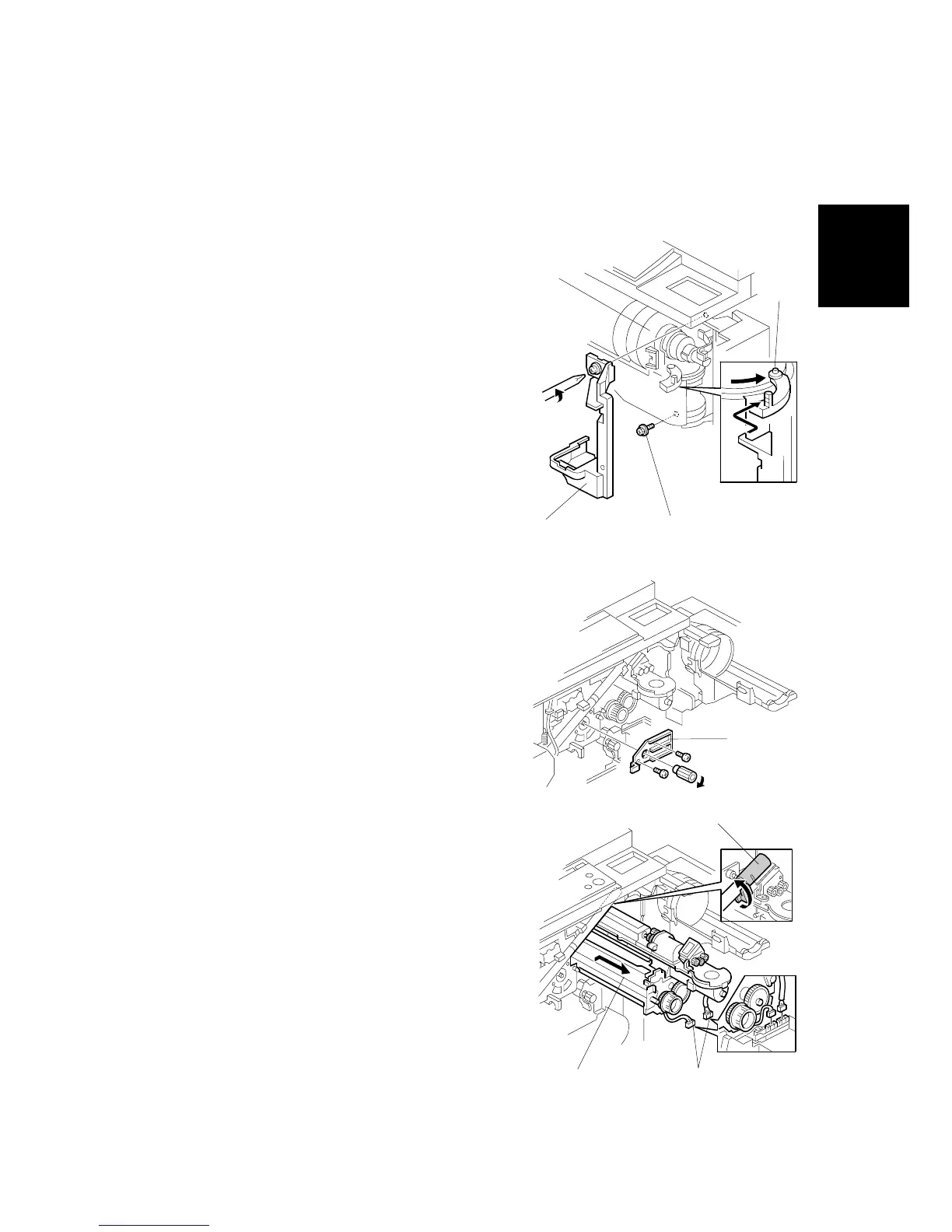

1. Remove shutter cover [A] of the toner
supply unit ( x 1).
2. Remove the lock screw [B] from the toner
bottle open/close bracket.
3. Make sure that the shipping tape at [C]
has been removed.
4. Pull the toner bottle holder out and swing
the toner bottle holder to the right.
NOTE: After re-installation, the tab [D]
should be behind the stay and
its pin below should be in the
open track below.
5. Remove the face plate [E] of the
development unit (knob x 1, x 2).
6. Disconnect the development unit [F]
( x 2).
NOTE: If the LCT is installed, you may
need to disconnect it so the front
door can open far enough to
allow removal of the development
unit.
7. Close the supply pipe shutter [G], and
then while allowing the development unit
[H] to slip to the right, slowly pull it out of
the machine.
B064I300.WMF
B064I302.WMF
B064I303.WMF
[A]
[B]
[C]
[G]
[H]
[F]
[D]
[E]
⇒
Rev. 12/2004
To Next Page
