OPERATION PANEL AND EXTERNAL COVERS
SM 3-9 B064 Series/B140 Series/G126
Replacement
Adjustment

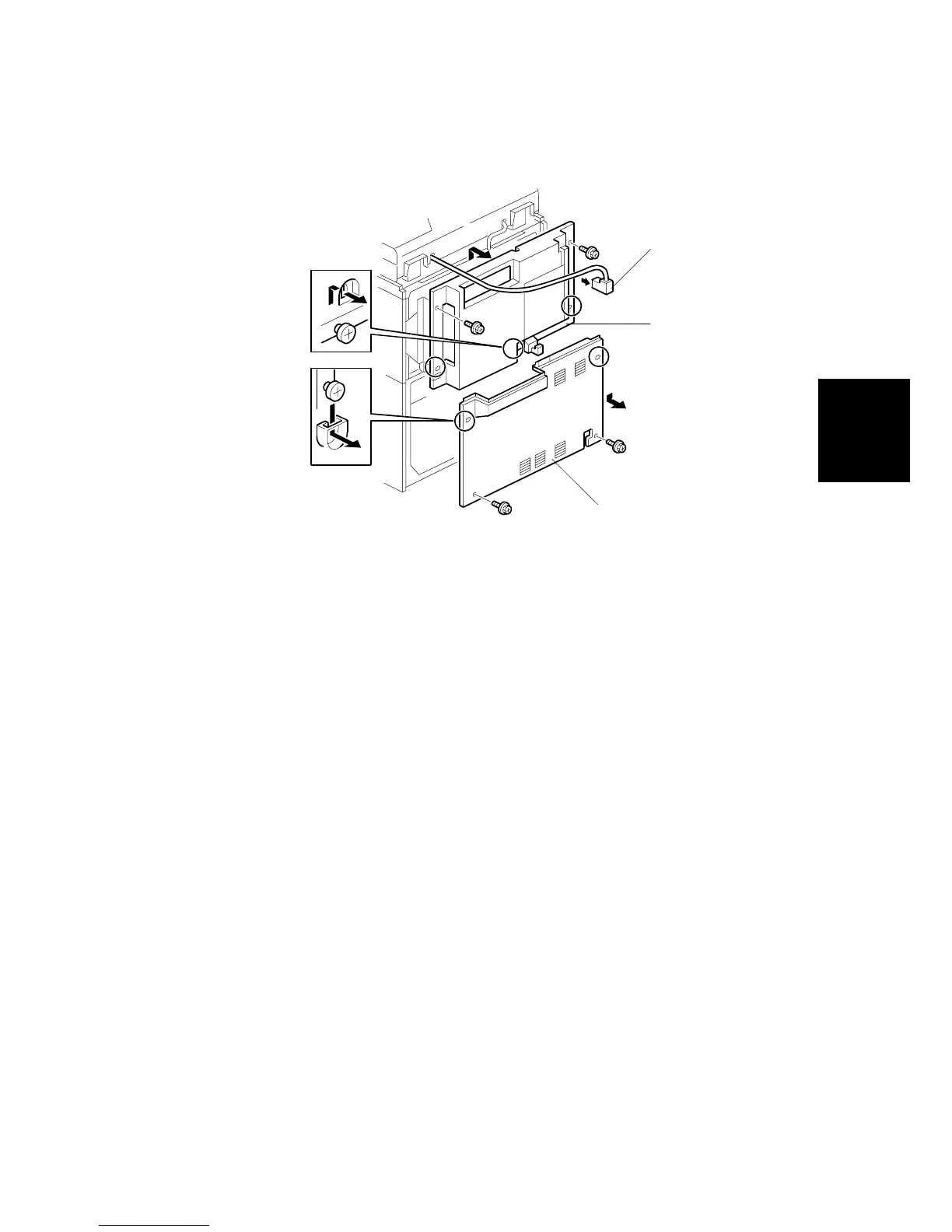

3.3.5 REAR COVERS
[A]: Disconnect the ADF plug.
[B]: Rear upper cover ( x 3)
• Slide down to remove.
• When re-attaching, before tightening the screws make sure that the tabs on
the cover are engaged with the shoulder screws.
[C]: Rear lower cover ( x 2)
• When re-attaching, before tightening the screws make sure that the tabs on
the cover are engaged with the shoulder screws.
B140R904.WMF
[A]
[B]
[C]
To Next Page
