MFP OPTIONS: B140 SERIES

B064 Series/B140 Series/G126 1-110 SM

1.17.6 IEEE 802.11B INTERFACE BOARD (B582-01, -02)

ACCESSORY CHECK

Check the accessories and their quantities against this list:

Description Q’ty

1. IEEE 802.11b Interface Board............................................... 1

2. WLAN PIC Card .................................................................... 1

3. Antennas .............................................................................. 2

4. Velcro pads .......................................................................... 2

5. Antenna Cap ......................................................................... 1

Installation

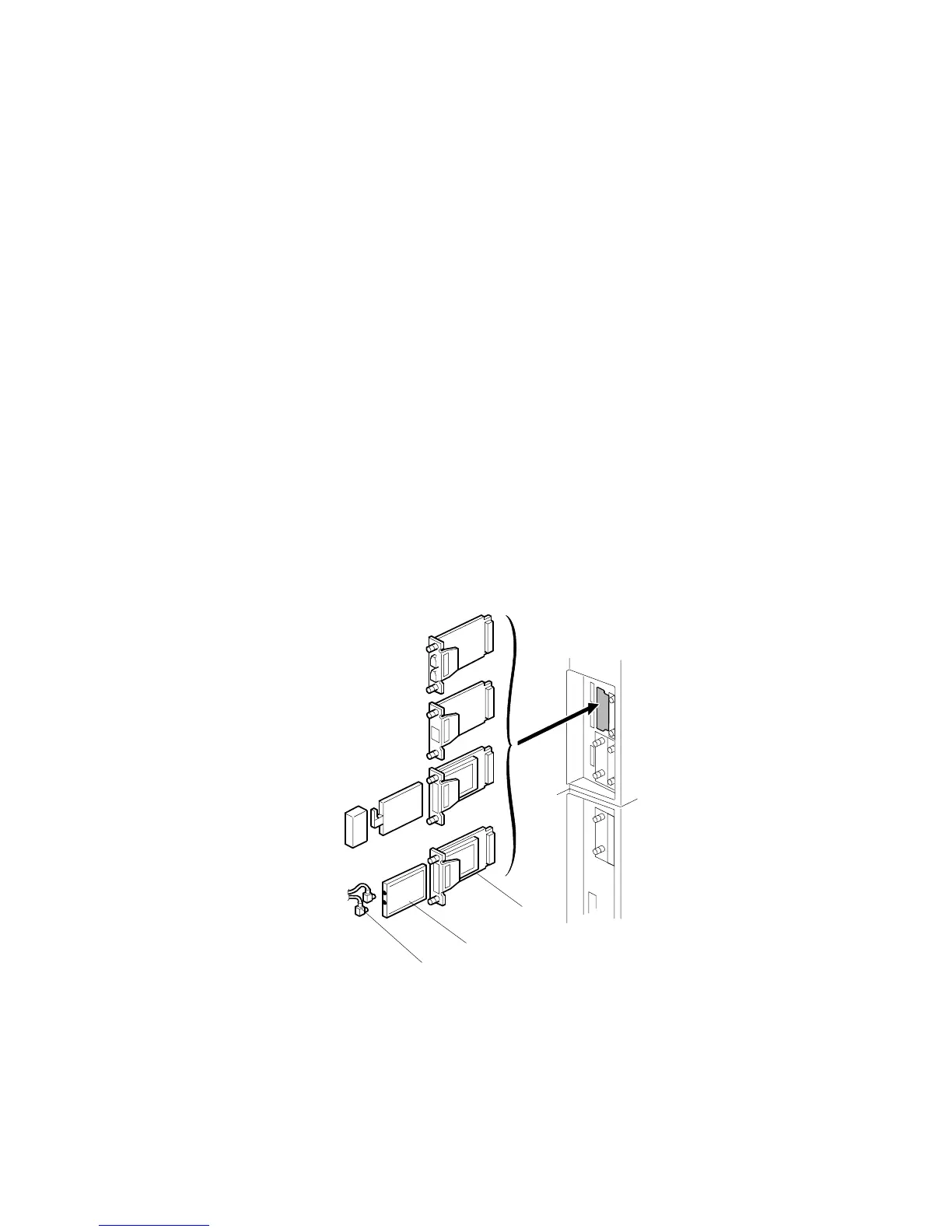

You can only install one of these cards, because only one PCI slot (B1) is available

for these options:

• USB 2.0

• IEEE 802.11b (Wireless LAN)

• IEEE 1394 (FireWire)

• Bluetooth Interface Unit G377

If a different card is installed in B1, you must remove it before you install IEEE

802.11b Interface Board.

1. Turn the machine off.

2. Remove the cover of Slot B1 ( x 2).

3. Remove the plastic cap [A] from the PCI card.

4. Connect the PCI card [B] to the wireless LAN board.

5. Install the wireless LAN board [C] in Slot B1 and attach it with the screws.

B659I108.WMF

[A]

[B]

[C]
