IEEE802.11B (WIRELESS LAN)
SM 9 G338/G339
Scanner/
Printer Unit
G338/G339
1.5 IEEE802.11B (WIRELESS LAN)
1.5.1 SPECIFICATIONS
Standard applied: IEEE802.11b
Data transmission rates: Speed Distance
11 Mbps 140 m (153 yd.)
5.5 Mbps 200 m (219 yd.)
2 Mbps 270 m (295 yd.)
1 Mbps 400 m (437 yd.)
Network protocols: TCP/IP, Apple Talk, NetBEUI, IPX/SPX
Bandwidth:
2.4GHz
(divided over 14 channels, 2400 to 2497 MHz for each channel)
NOTE: The wireless LAN cannot be active at the same time as the Ethernet LAN.
The following user tool setting determines which LAN is active: System
Settings – Interface Settings – Network - LAN Type.

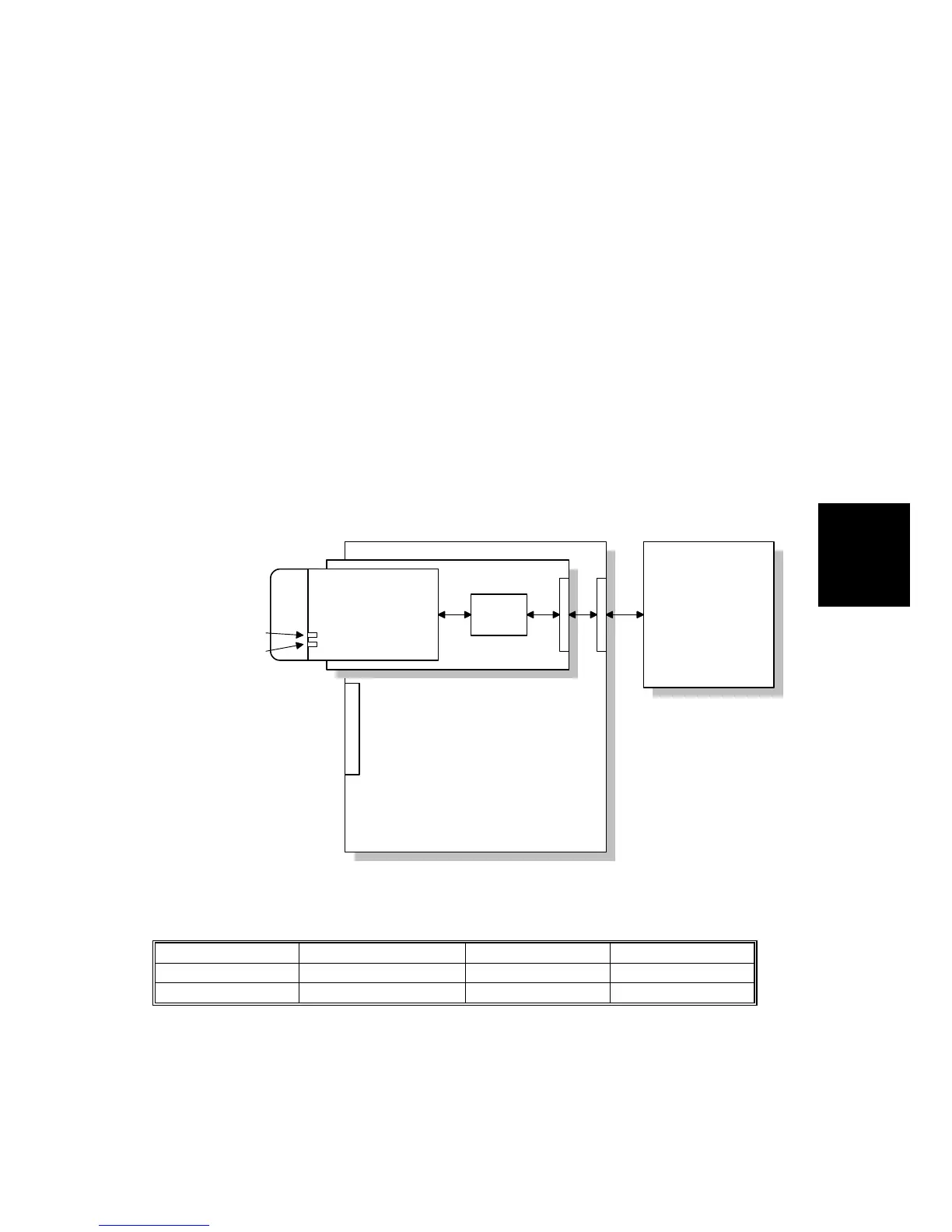

1.5.2 BLOCK DIAGRAM
LED Indicators
LED Description On Off
LED1 (Green) Link status Link success Link failure
LED2 (Orange) Power distribution Power on Power off
Controller Board
Engine Board
CN1
Parallel I/F
Interface Board
PCMCIA
Card Bus
Controller
CN3
802.11b
PCMCIA Card
LED1 (Green)
LED2 (Orange)
G338D900.WMF
