IMAGE FUSING AND PAPER E
XIT
SM
6-121
B064 Series/B140 Series/G126
Detailed
Descriptions
6.12.6

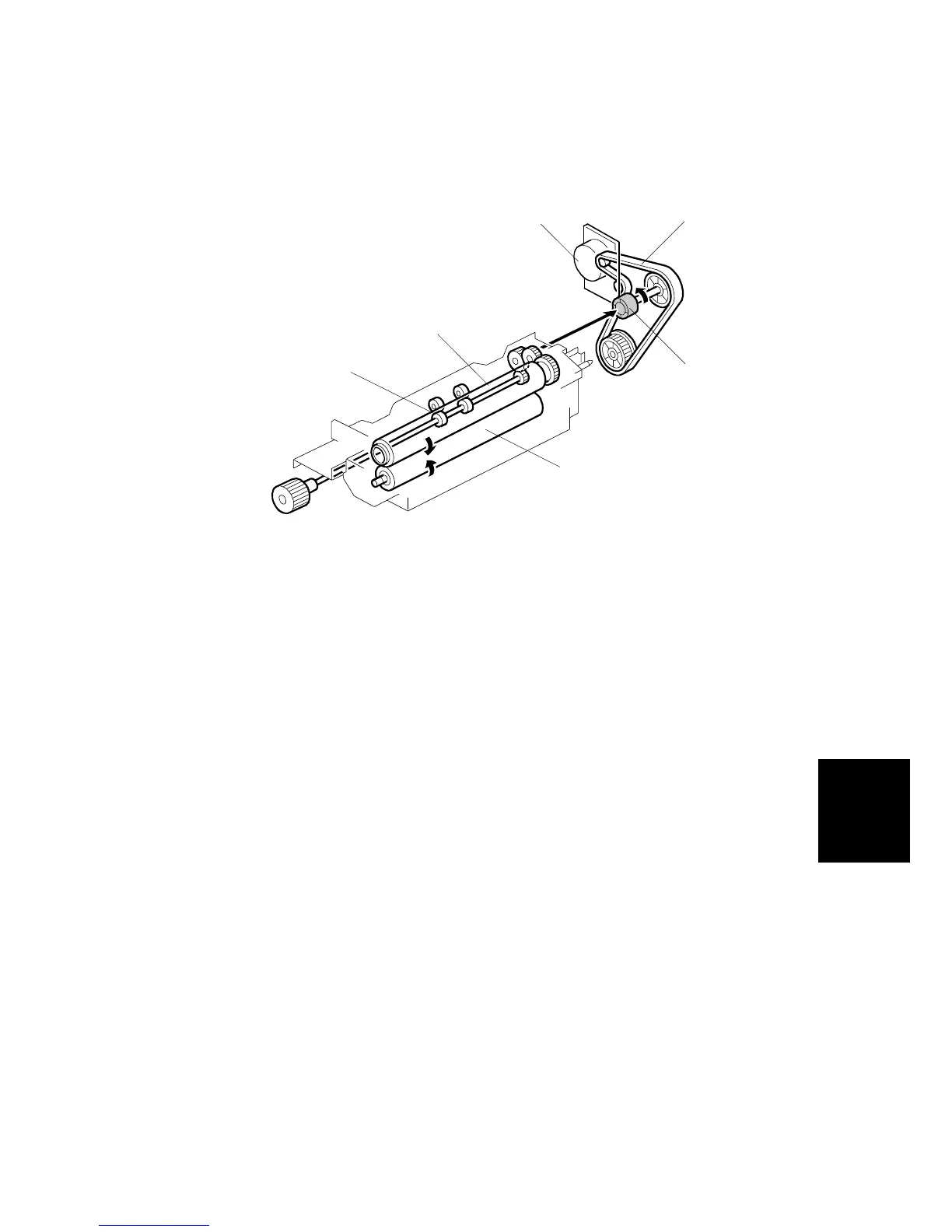

FUSING UNIT DRIVE
Fusing/exit motor [A]
→
timing belt [B]
→
gear coupling [C]
→
fusing unit
Inserting the fusing unit
engages the coupling [C].
The pressure roller [D] is driven by fric
tion between the pressure roller and the hot
roller [E].
The fusing unit exit rollers [F] are driven through some gears.
B140D9A9.WMF
[B]
[A]
[C]
[D]
[E]
[F]
718
720
