VERTICAL LIFT MECHANISM
B468/B469/B674 30 SM
2.5 VERTICAL LIFT MECHANISM
2.5.1 OVERVIEW
At power on, both trays lower slightly, then the upper tray stops at the feed-out
position. The machine is ready for feed out to the upper tray [A]
During printing, the upper [A] or lower tray [B] (whichever is selected) is repeatedly
lowered until the stack reaches a certain height and then the job halts. The upper
tray holds 500 sheets (A4 LEF), and the lower tray holds 2500 sheets.
Both trays can be used for the normal, shift, and staple modes. However, only the
lower tray can be used for the booklet binding (saddle-stitch mode).

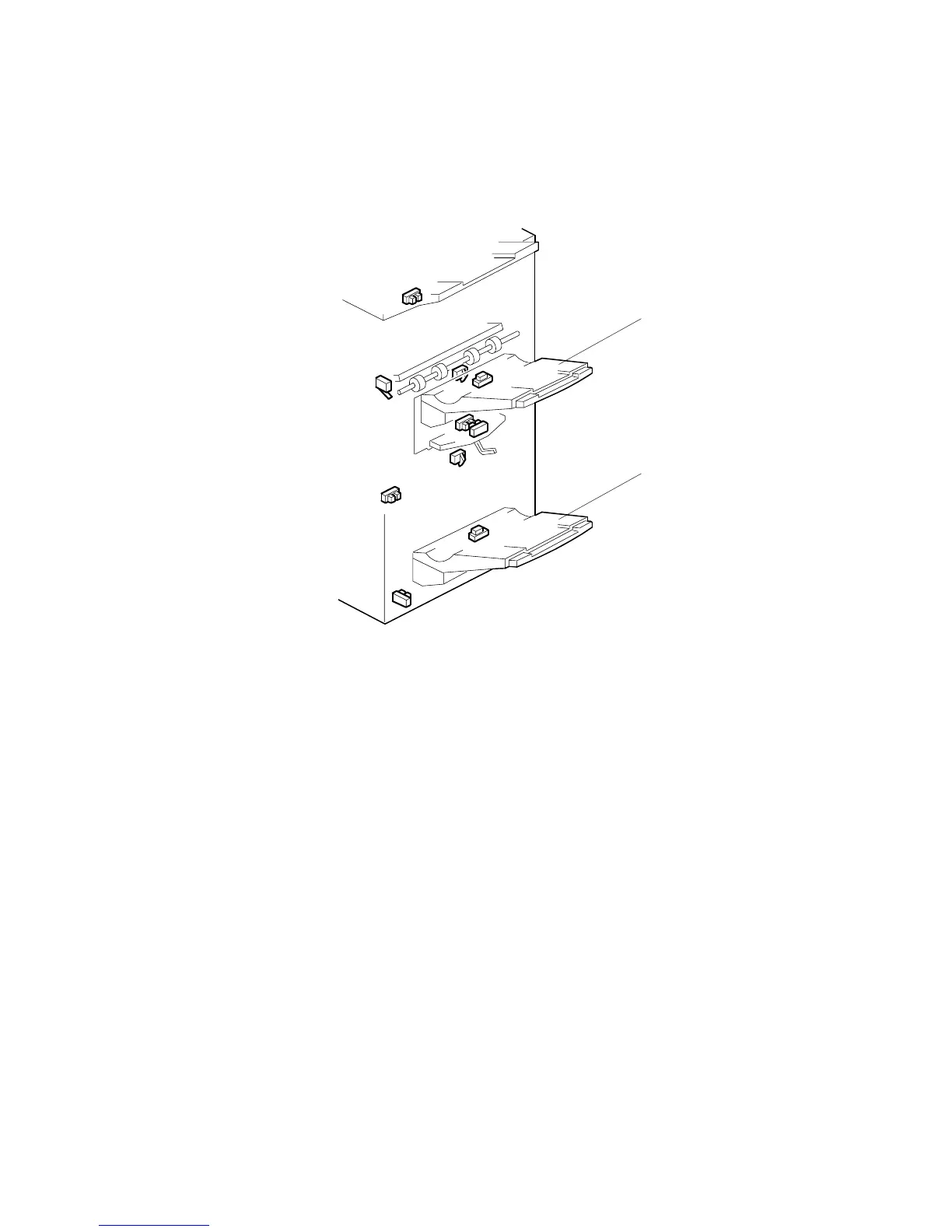

B468D101.WMF
