MAIN MOTOR AND CONTR
OL BOARD
SM 3
B471
9-Bin Mailbox
B471
1.3

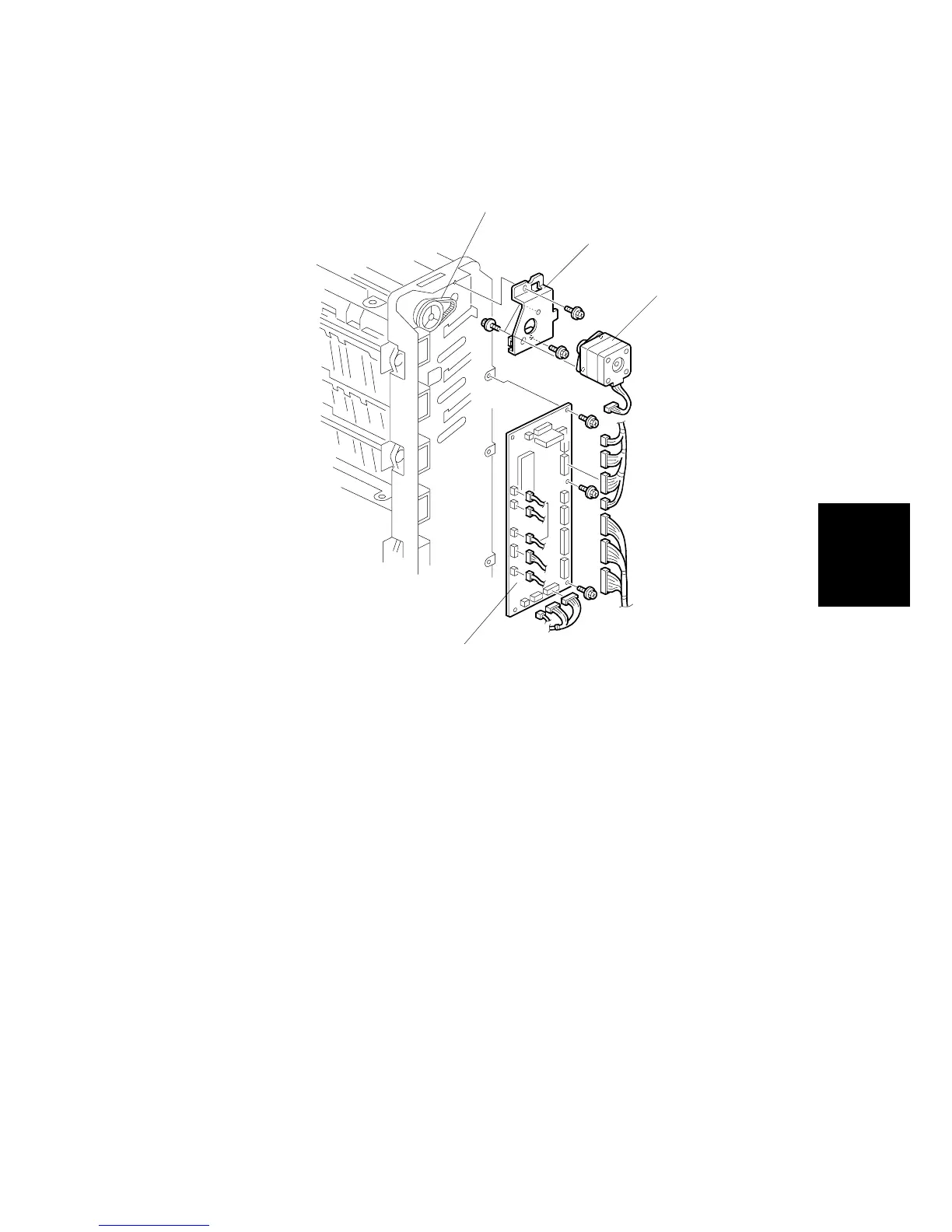

MAIN MOTOR AND CONTROL BOARD
Rear cover (
1.1)
[A]:
Control board (
x 3,
x 17)
[B]:
Main motor bracket (main motor
x 1,
x 2)
[C]: Timing
belt
[D]:
Main motor (
x 1)
B471R002.W
MF
[A]
[B]
[C]
[D]
864
866
