BOTTOM PLATE LIFT WIRE REPLACEMENT
B475 2
SM
1.1.2

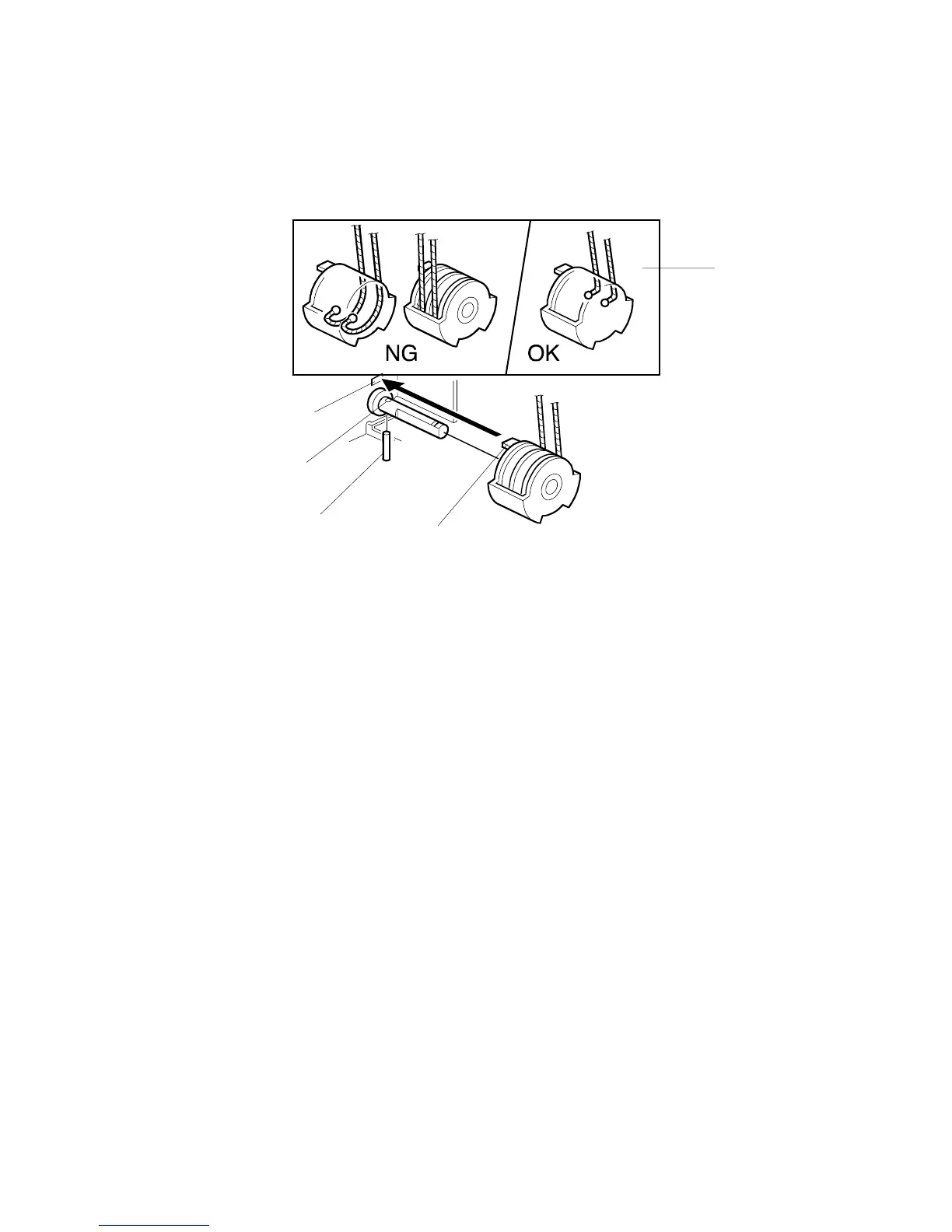

INSTALLING THE LIFT WIRE
1.
Put the positioning pin [A] in hole [B]
2.
Fit the projection [C] into slot [D].
3.
Attach the wire as shown [E].
NOTE:
Make sure that the wir
es are not crossed.
B475R061.WMF
[E]
[D]
[B]
[A]
