Ricoh 4051 Service Manual
4
of 1
of 1 rating
1060 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
REPLACEMENT AND ADJUSTMENT
SM 7
B706
3000-Sheet
Finisher
B706

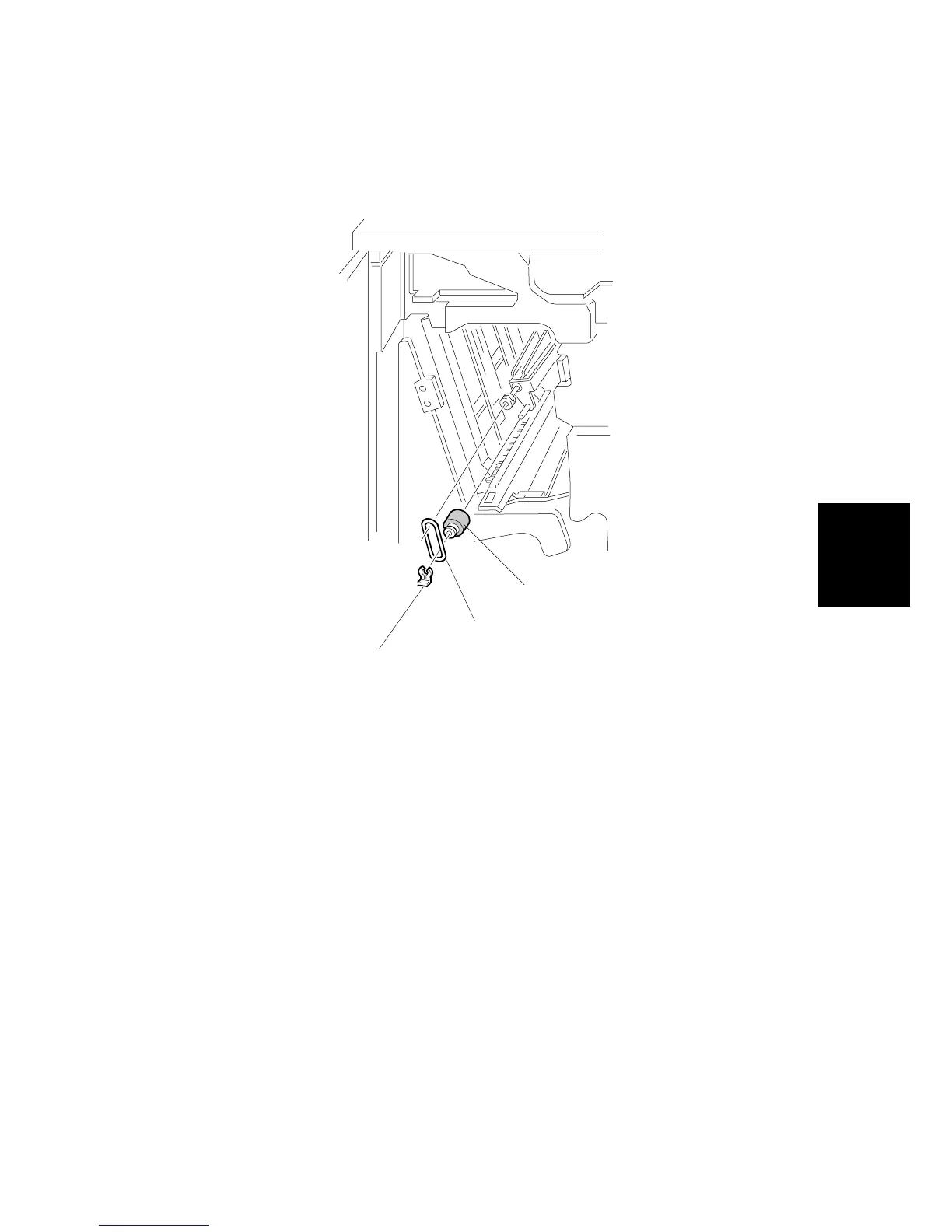

3.2.2 POSITIONING
RO
LLER
1.
Open the front door.
2.
Remove the snap ring [A].
3.
Release the rubber belt [B].
4.
Replace the positioning roller [C].
B706R506.
W
MF
[A]
[B]
[C]
940
942
