PAPER FEED
B064 Series/B140 Series/G126 6-106 SM
6.11.10 BY-PASS TRAY
By-pass Feed and Separation

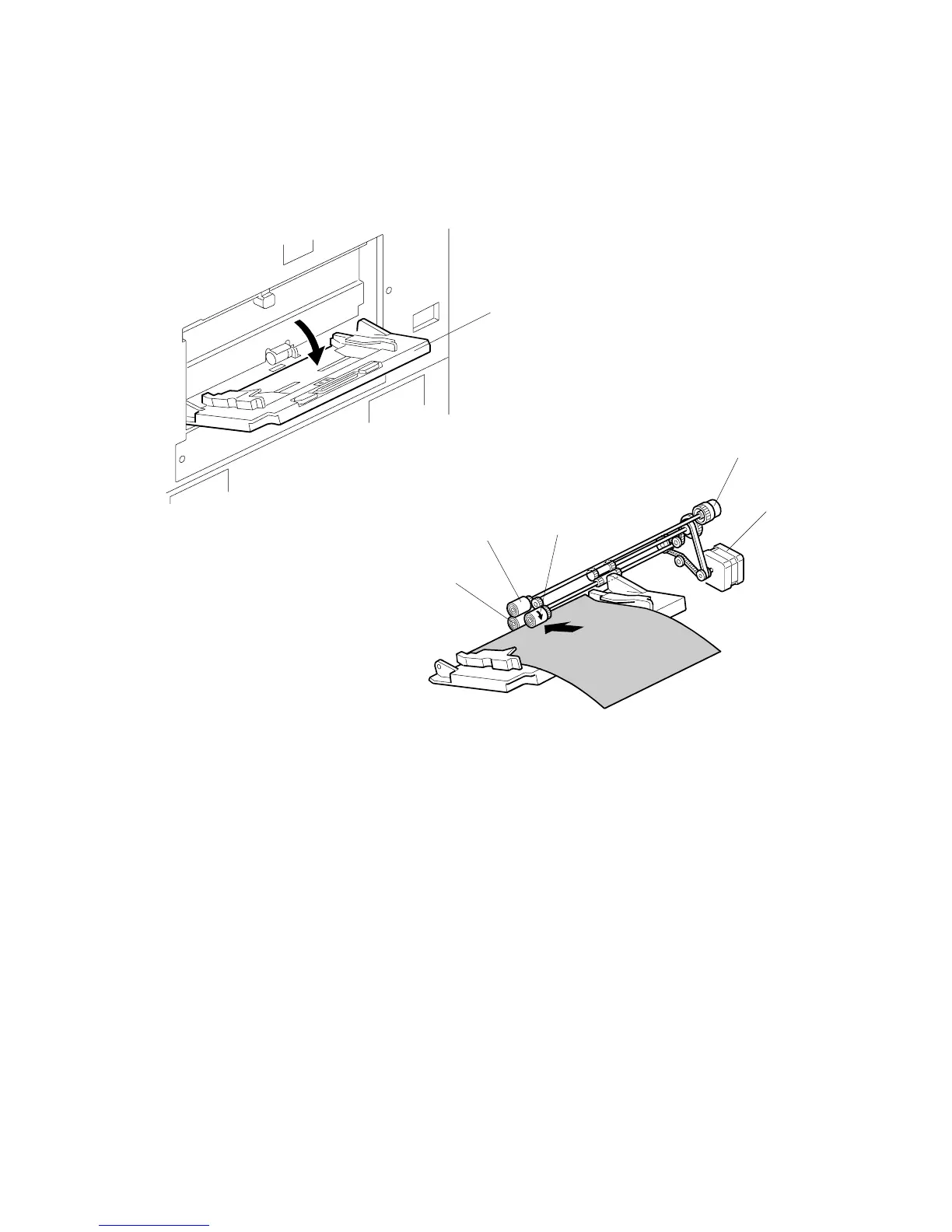

The by-pass tray [A] opens from the right side of the machine.
By-pass feed motor [B] → By-pass feed clutch [C] → Pick-up roller [D] (pick-up
solenoid – see the next page) → Feed roller [E] and separation roller [F]
The by-pass tray uses a standard FRR feed system.
( Handling Paper> Paper Feed Methods> Forward and Reverse Roller (FRR)
or By-pass Feed Tray)
NOTE: The direction of feed in the by-pass tray is opposite from that of the other
paper trays, so their parts (with the exception of the separation roller) are
not interchangeable.
B140D995.WMF
B140D996.WMF
[A]
[B]
[C]
[D]
[E]
[F]
To Next Page
