DUPLEX UNIT
SM 3-85 B064 Series/B140 Series/G126
Replacement
Adjustment

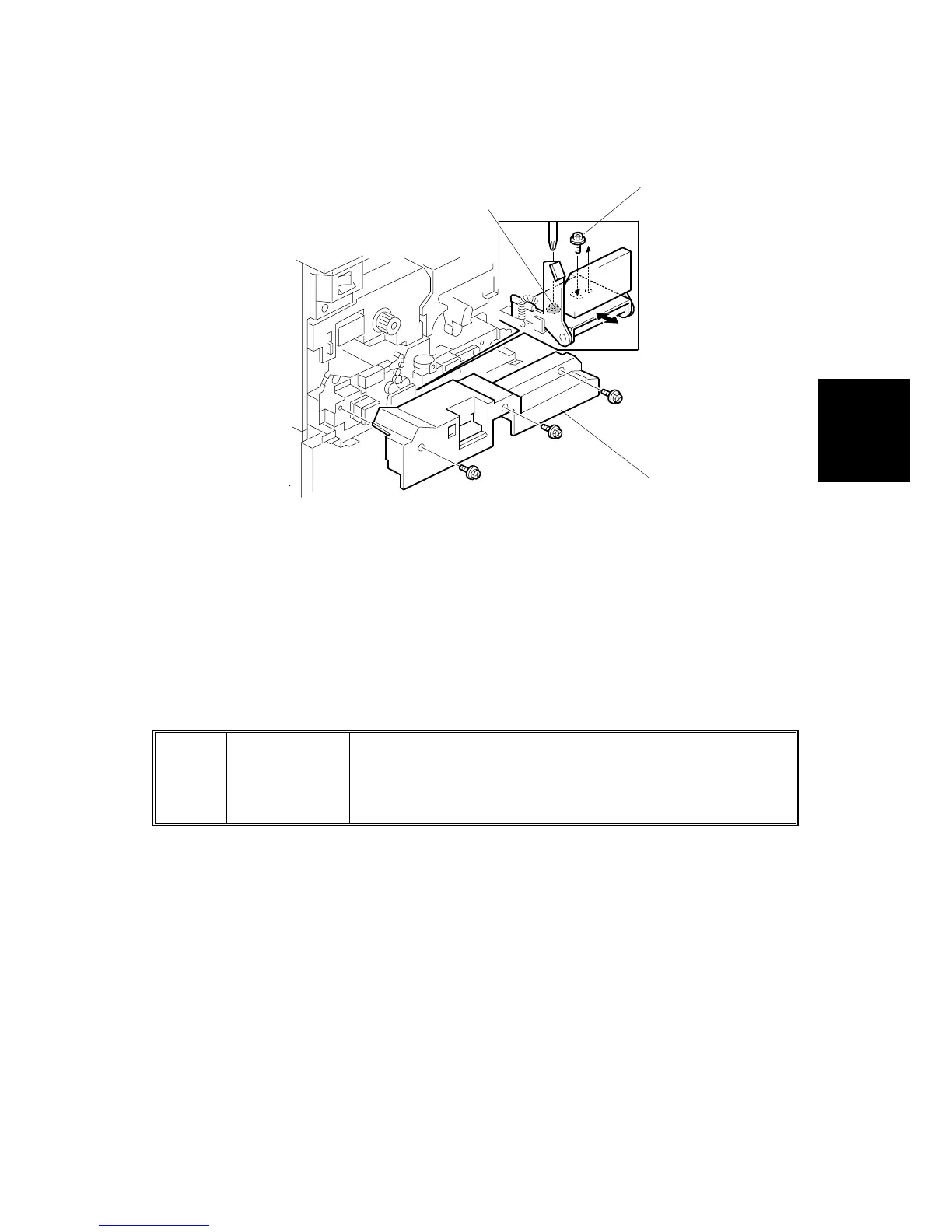

3.10.2 DUPLEX UNIT SIDE-TO-SIDE ADJUSTMENT
1. Remove the inner cover [A] ( x 3)
2. Move the handle lock screw [B] from the right to the center.
3. Loosen the left lock screw [C], then adjust the position of the duplex unit.
3.10.3 JOGGER FENCE ADJUSTMENT
SP1008
Duplex Fence
Adjustment
Execute this SP to adjust the distance between the jogger
fences, if required. A smaller value shortens the distance. If the
fences are too far apart, skewing may occur in the duplex tray.
If the fences are too close, the paper may be creased in the
duplex unit. For details, see “5. Service Tables”.
B140R809.WMF
[A]
[B]
[C]
To Next Page
