ADF (B140 SERIES/B064 SERIES)
B064/B140 Series/G126
3-138
SM
3.13.11
BOTTOM
PL
ATE LIFT MOTOR

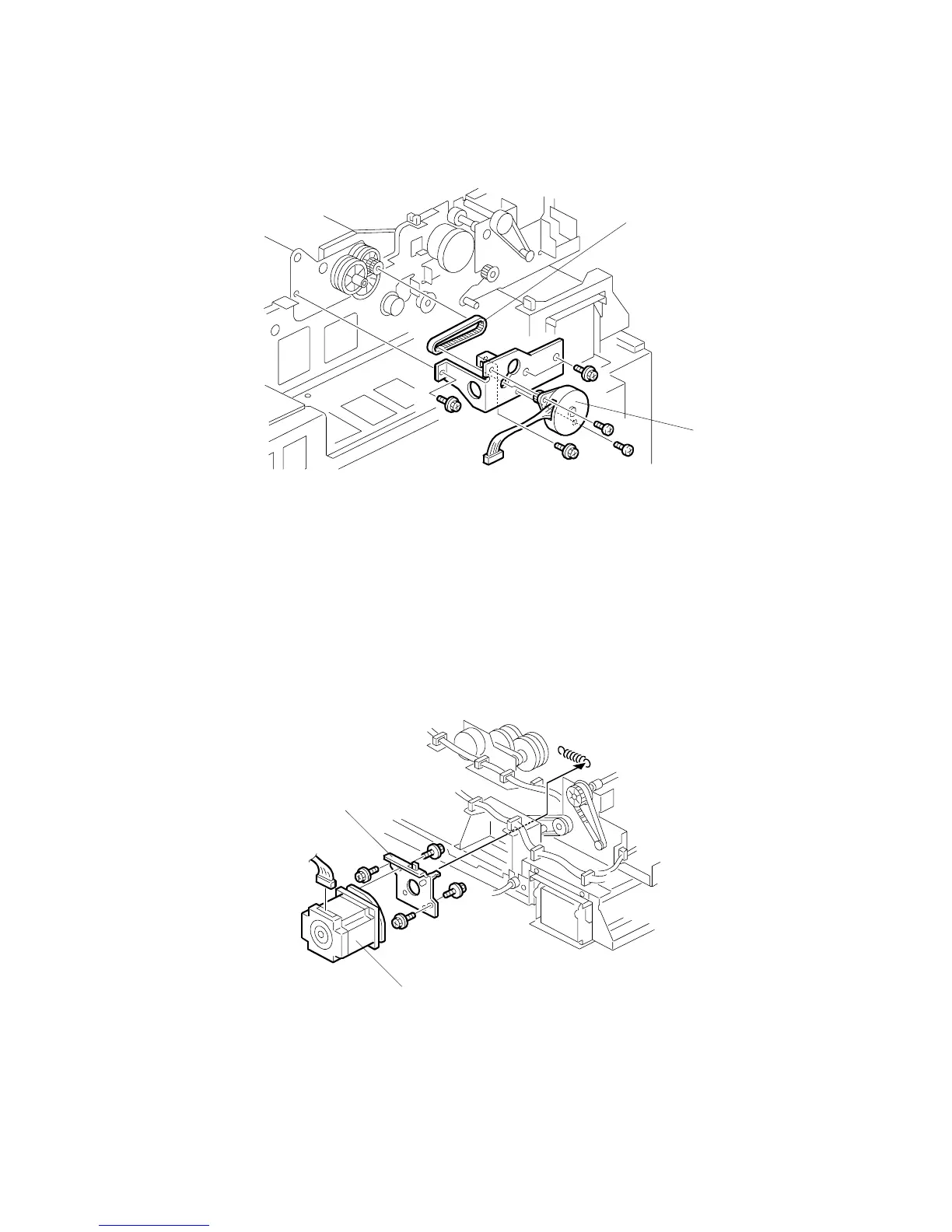

Open the feed cover.
ADF Rear cover (
3.13.1)
[A]:
Bottom plate lift moto
r bracket (harness x 1,
x 1,
x 2, timing belt x 1)
[B]:
Bottom plate lift motor (
x 2)
3.13.12
FEED
MOTOR
ADF Rear cover (
3.13.1)
[A]:
Feed motor bracket (
x 2,
x 1, spring x 1, belt x 1)
[B]:
Feed motor (
x 2)
B140R880.
W
MF
B140R881.W
MF
[A]
[B]
[A]
[B]
311
313
