IMAGE TRANSFER AND PAPER SEPARATION
SM 6-81 B064 Series/B140 Series/G126
Detailed
Descriptions
6.10.3 TRANSFER BELT CHARGE
The transfer power pack [A], inside the transfer belt unit, applies the following
charges:
• Transfer Roller: Max. +7.0 kV through terminal [B] to the transfer roller [C].
• Cleaning Roller: About +1.0 kV max. through terminal [D] to the cleaning
roller [E].
Drive rollers [F, G] are grounded so that the cleaning unit can clean the belt easily.

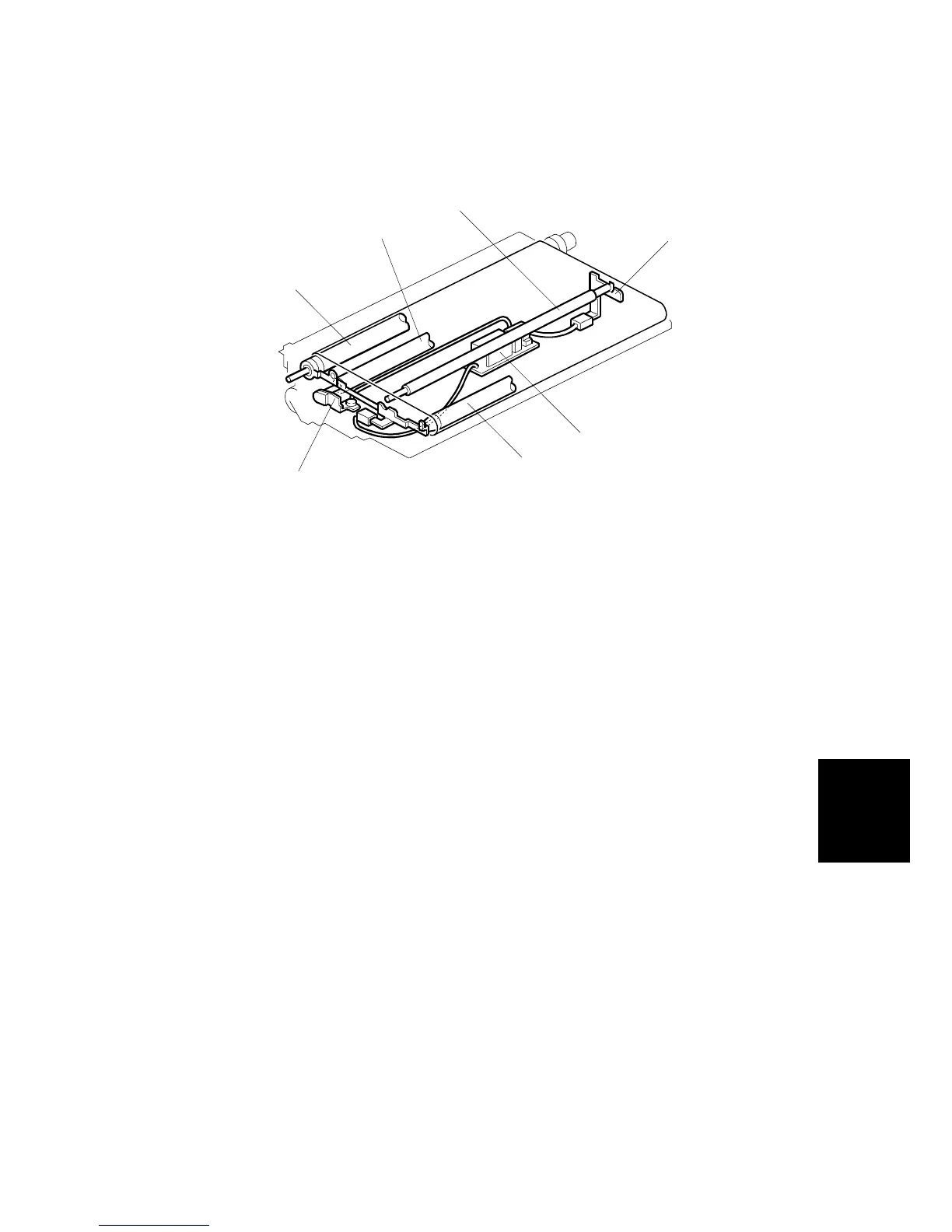

B140D963.WMF
