PAPER FEED
B064/B140 Series/G126 3-104 SM
3.11.8 FEED UNIT
Front door ( 3.3.2)
LCT entrance guide cover and right lower cover ( 3.3.3)
• If the LCT is connected, disconnect it and pull it away from the machine.
Pull out all three trays (do not remove).

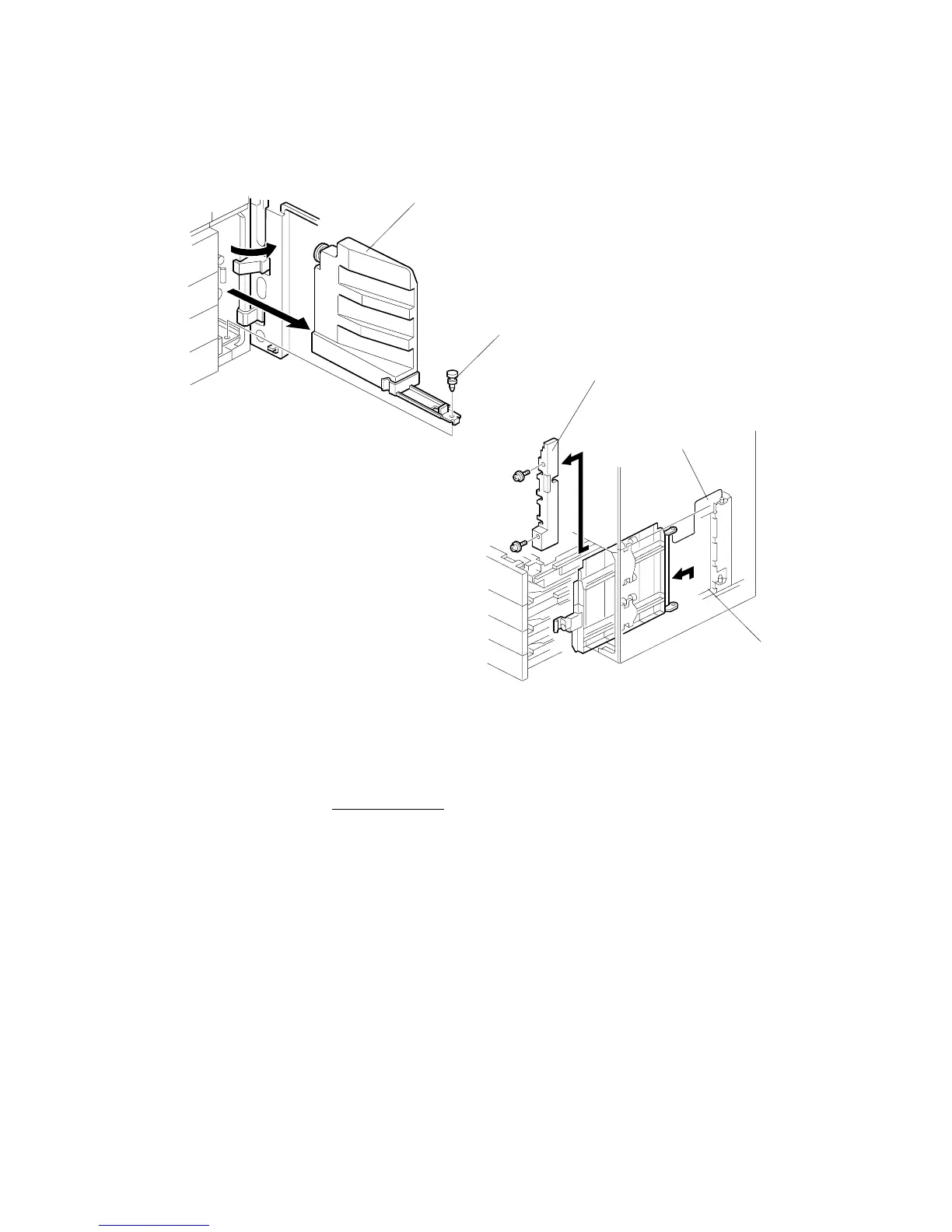

[A]: Nylon peg
[B]: Toner collection bottle
[C]: Vertical transport guide
[D]: Inner cover ( x 2)
NOTE: When re-installing the vertical transport guide, remove the lower right cover
then insert from [E]. ( 3.3.3)
B140R838.WMF
B140R839.WMF
[D]
[C]
[E]
[A]
[B]
