KEY COUNTER BRACKET (B452)
SM 1-51 B064 Series/B140 Series/G126
Installation

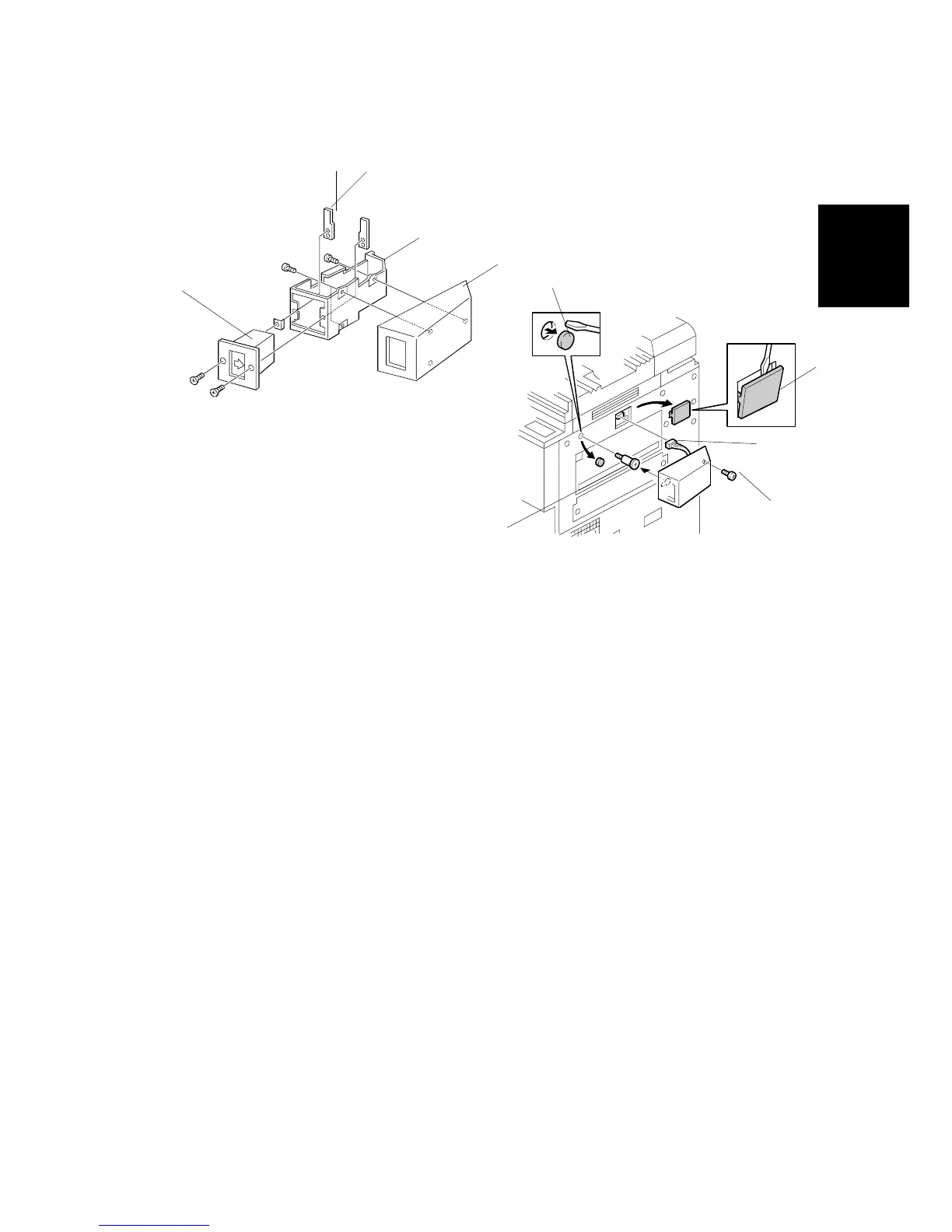

1.10 KEY COUNTER BRACKET (B452)
1. Hold the key counter plate nuts [A] on the inner surface of the key counter
bracket [B] and install the key counter holder [C].
2. Attach the key counter holder to the bracket ( x 2).
3. Install the key counter cover [D] ( x 2).
4. Remove the caps [E, F] from the right cover with a screwdriver.
5. Install the stepped screw [G].
6. Join the connectors [H].
7. Put the key counter holder assembly [I] on the stepped screw.
8. Change the setting of the Key Counter Management to the setting that is
necessary for the customer (User Tools> System Setting> Key Operator Tools).
9. If necessary, change the setting of SP5121 (Counter Up Timing).
B140I001.WMF
B064I103.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[I]
To Next Page
