PAPER FEED
B064 Series/B140 Series/G126 6-92 SM
6.11.4 PAPER FEED AND SEPARATION MECHANISM
Paper Feed and Separation: No Paper Present

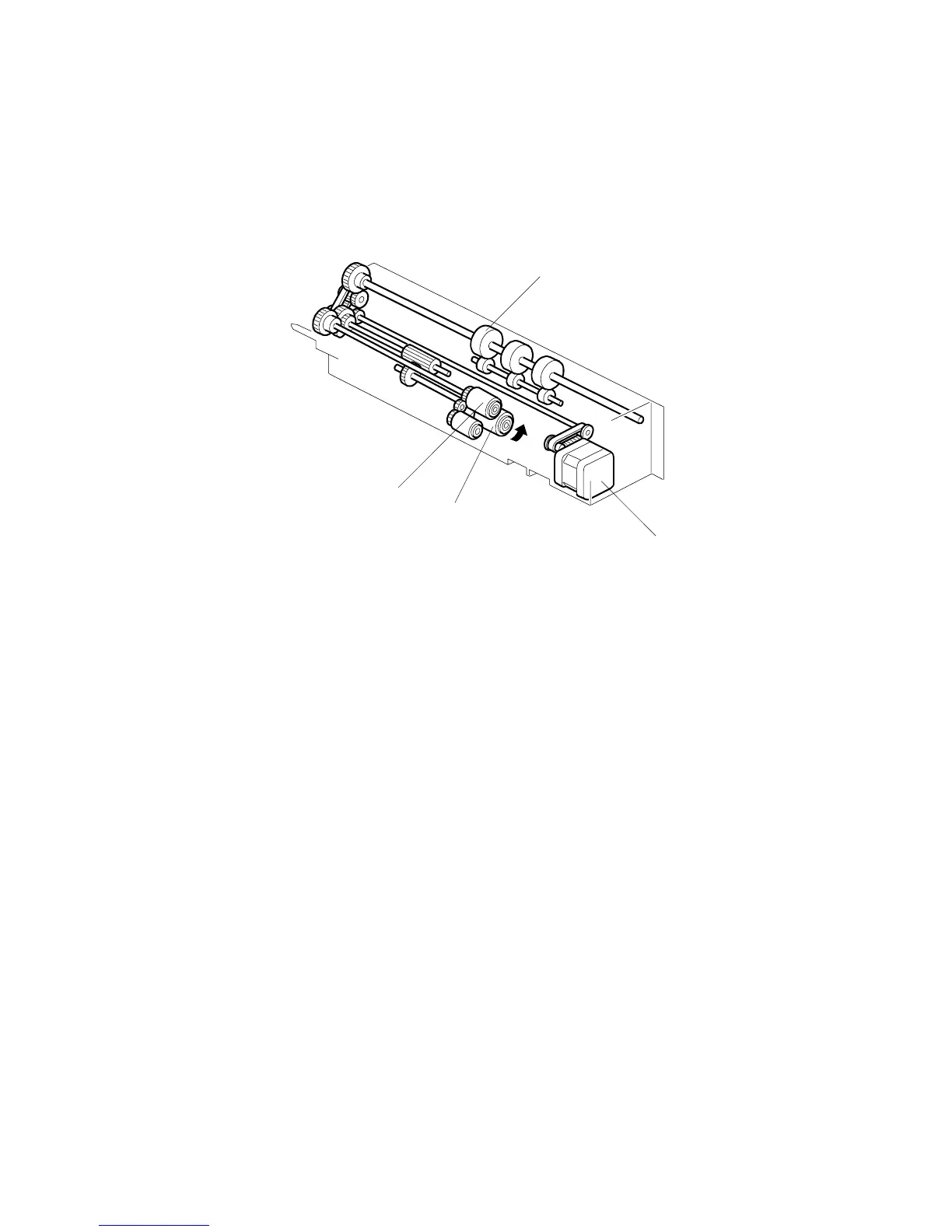

While waiting for the first sheet to feed and between sheets, the feed roller [A] must
not rotate. However, the grip roller [B] must turn, so that any paper coming up the
vertical transport path continues to feed. To do this, the paper feed motor [C]
rotates in reverse. The separation roller [D] is free to rotate in the direction shown
by the arrow, because the separation roller solenoid is off.
When the feed motor reverses:
Feed roller [A]
Æ
No rotation
Separation roller [D]
Æ
Free to rotate
Grip roller [B]
Æ
Rotates
B140D975.WMF
[C]
[B]
[D]
[A]
