COVER INTERPOSER TRAY (B470)
SM 1-41 B064 Series/B140 Series/G126
Installation
1.8.2 INSTALLATION PROCEDURE
This procedure shows you how to install the Cover Interposer Tray B470 on the:
• 3000-sheet Finisher (Booklet Finisher) B468/B674
• 3000-sheet Finisher B469
• 3000-sheet Finisher B478/B706.
NOTE: The B468/B469/B674 require installation of only the front spacer. The
B478/B706 requires installation of corner plates.

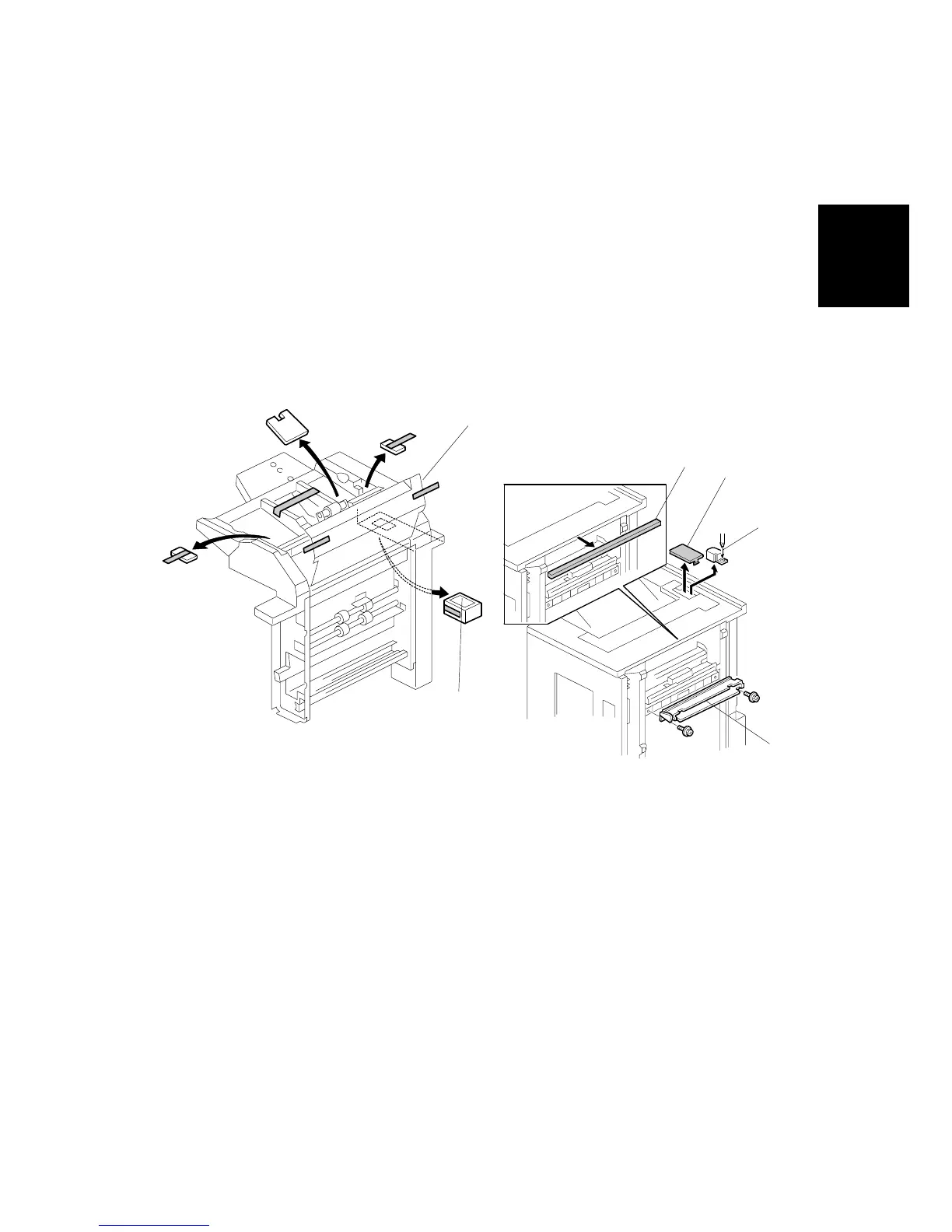

Removing Tapes and Retainers
1. If the finisher is connected to the machine, disconnect it.
2. Remove all tape and retainers from the cover interposer tray [A].
3. Remove the tape and cardboard [B] from the ground connector.
4. Remove the cover [C] of the relay connector.
5. Loosen the screw of the bracket [D] ( x 1) then remove the bracket.
NOTE: If you will install the cover interposer tray with a finisher that was
installed on the machine before this time (B468/ B469/ B478/ B674/
B706), remove the sponge strip [E] from the finisher. Keep it until you
attach it again to the interposer tray.
6. Remove the guide plate [F].
B470I001.WMF
B470I007.WMF
[A]
[C]
[D]
[E]
[B]
[F]
To Next Page
