FUSING UNIT
B064/B140 Series/G126
3-82
SM

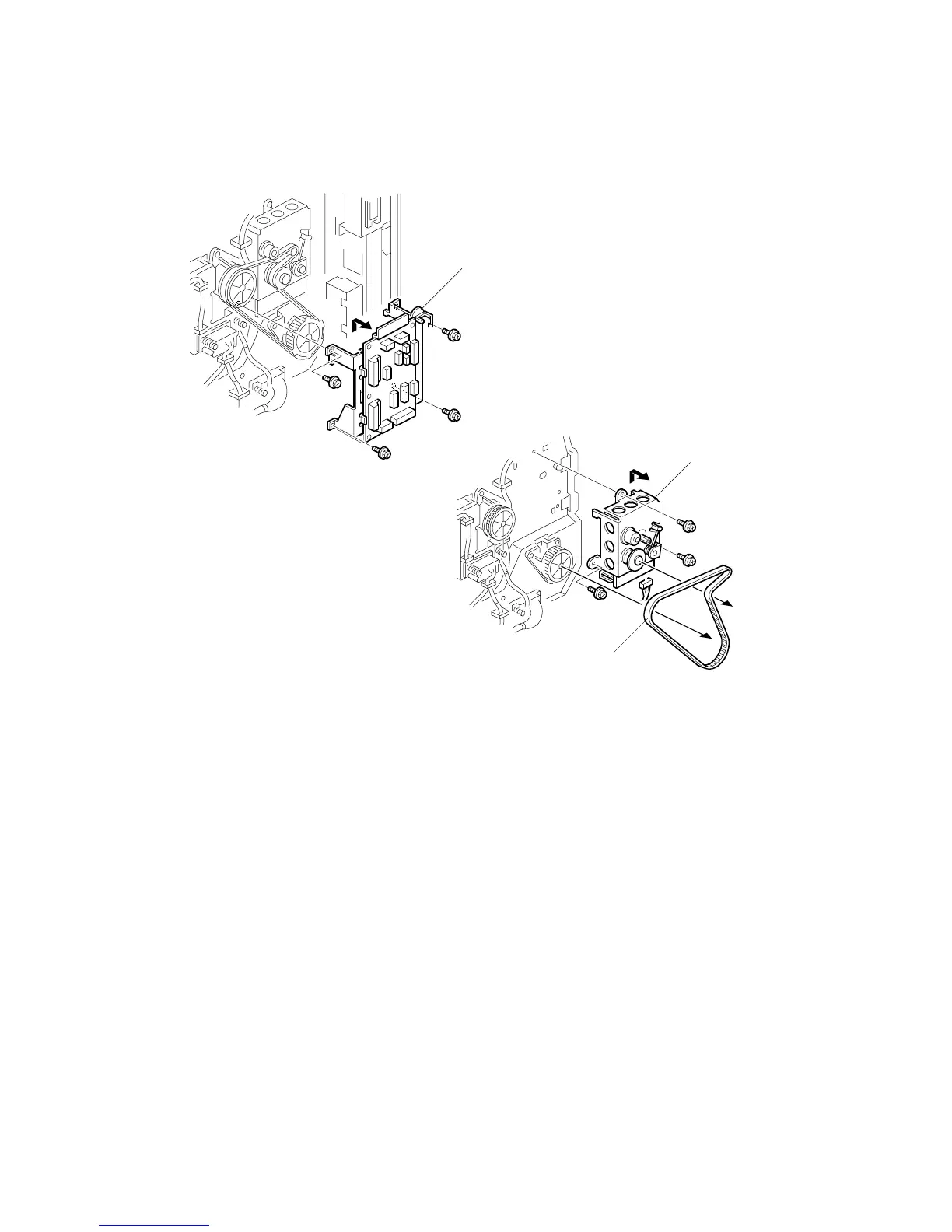

3.9.13 FUSING/EXIT
MOTOR
Rear upper cover (
3.3.5)
Open the I/O board (
x 2)
[A]:
CNB bracket (
x 4,
x all)
[B]: Timing
belt
[C]:
Fusing/exit motor bracket (
x 1)
Fusing/exit motor (
x 2)
•
The fusing/exit motor (not s
hown) is inside the bracket.
B140R804.W
MF
B140R805.W
MF
[A]
[C]
[B]
255
257
