REPLACEMENT AND ADJUSTMENT
B706 10
SM
3.4
JOGGER FENCE
1.
Open the front door.
2.
Pull out the jogger and stapler unit.
3.
Push both fences to the center.
4.
Remove the left jogger fence [A] (
x 1)
5.
Remove the right jogger fence [B] (
x 1).
NOTE:
If the screws are difficult
to remove or re-atta
ch, remove the jogger
fence belt and spring plate.

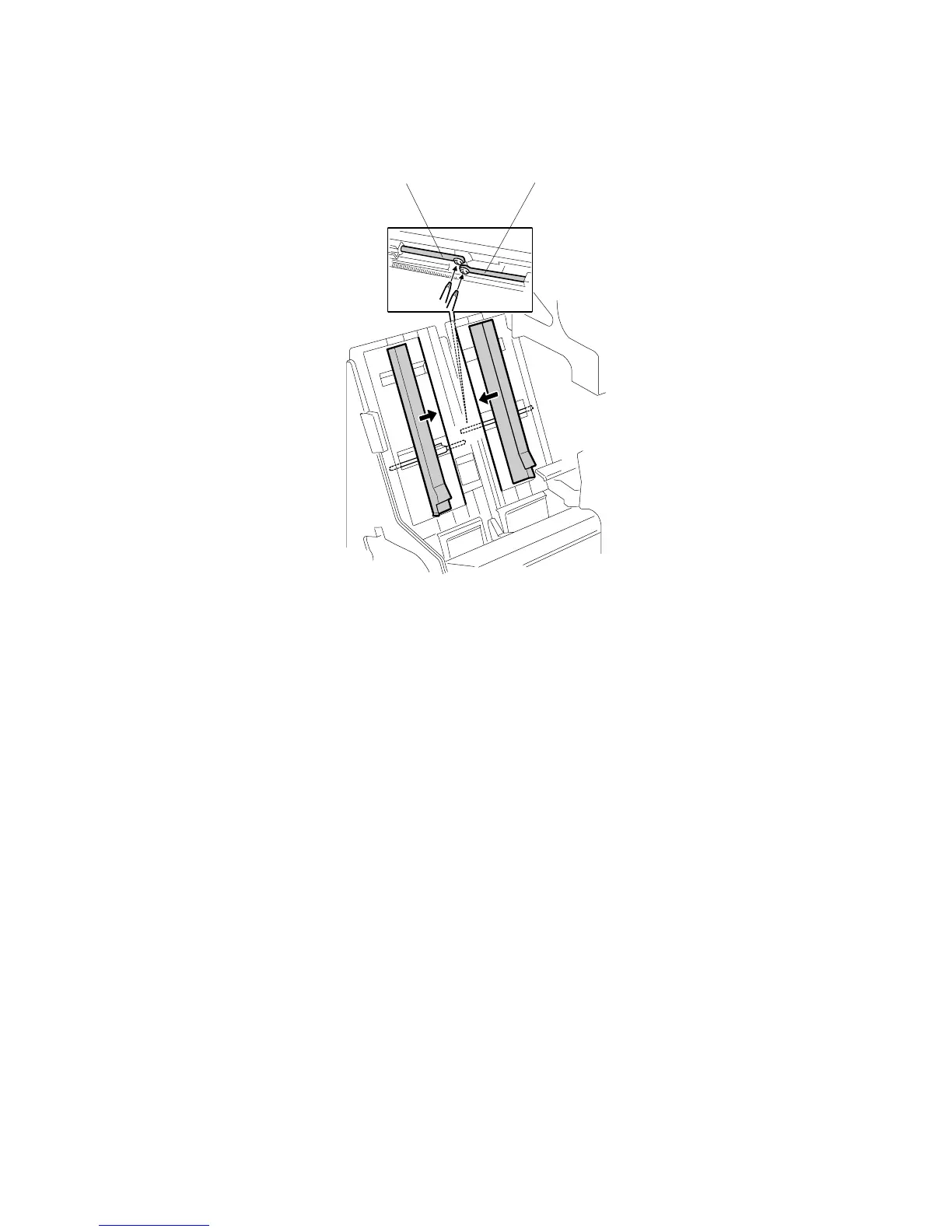

B706R525.
W
MF
[B]
[A]
943
945
