MFP OPTION SLOT ASSIGNMENT
SM 1 B659/B581/B596/B582/G377/B609/B735
MFP Options
B659/B581/
B596/B582/
G377/B609/
B735
1. DETAILED DESCRIPTIONS
1.1 MFP OPTION SLOT ASSIGNMENT
To make it easy to install MFP options, there are 6 slots (A1, A2, B1 to B4) for
boards and 3 slots (C1 to C3) for SD cards on the controller box. Each board or SD
card must be put in the correct slot. The correct slots for each option are shown on

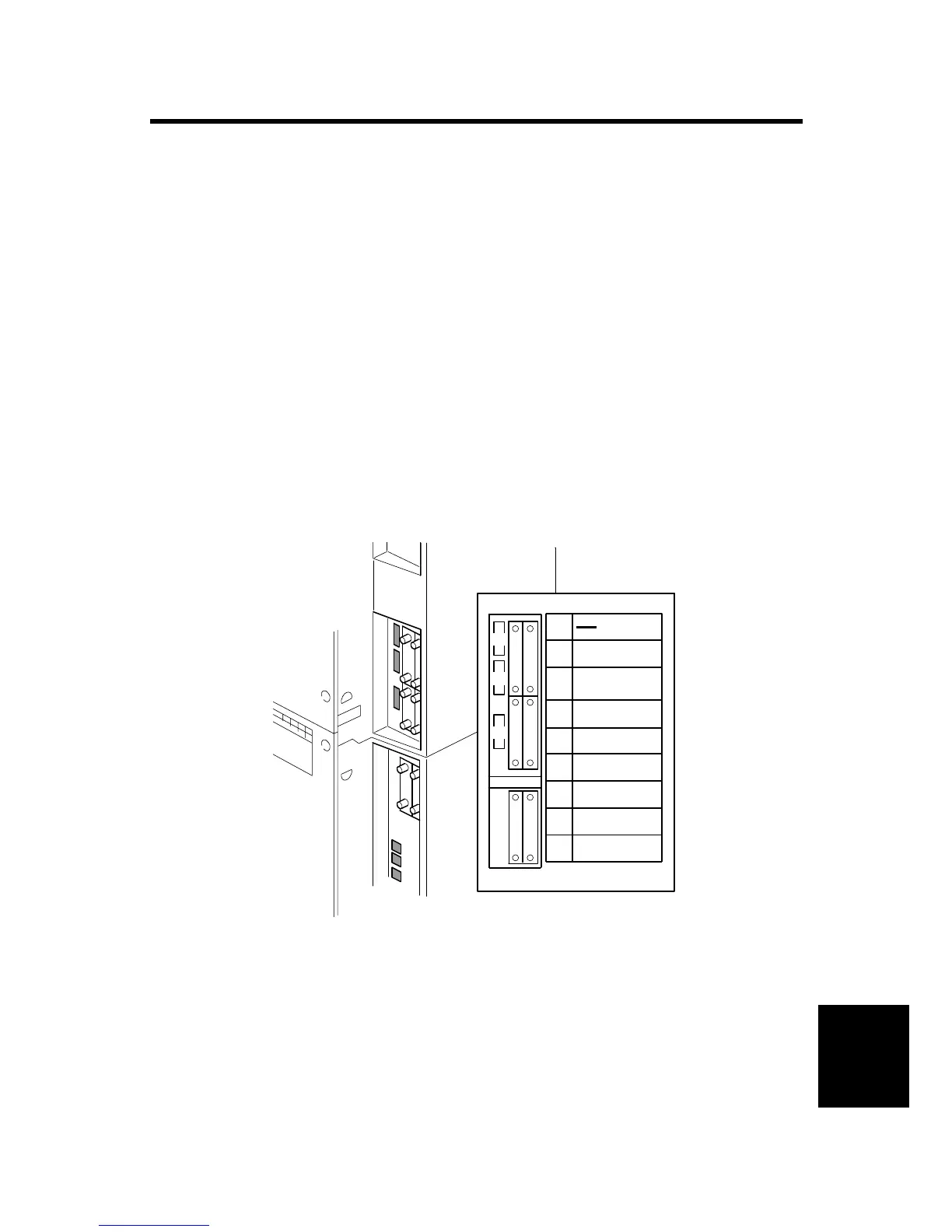

the decal attached to the controller box cover (shown in the diagram).
NOTE: Only one PCI slot (B1) is available for one of these options. If a card is
installed in B1, must be remove it before install above options.
• USB 2.0
• IEEE 802.11b (Wireless LAN)
• IEEE 1394 (FireWire)
• Bluetooth Interface Unit G377
A1
A2
B1
B2
B3
B4
C1
C2
C3
1394/802.11b/
USB2.0/Bluetooth
Tandem
File Format Converter
Paralle(1284)
Ethernet
Printer/Scanner
Option PDL
Service
C1
C2
C3
B1 B2
B3 B4
A1 A2
B659D900.WMF
