SERVICE PROGRAM MODE
B064 Series/B140 Series/G126 5-4 SM

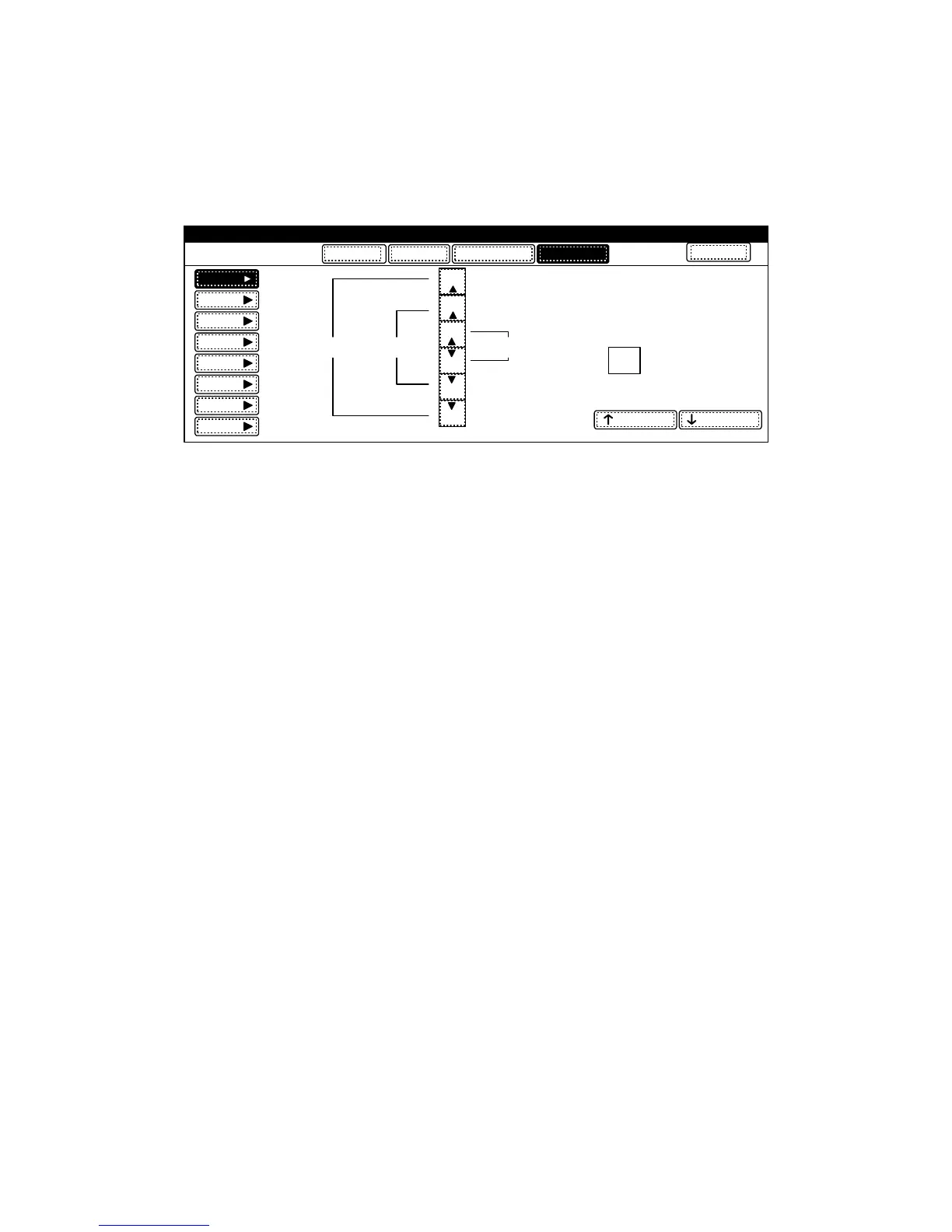

SP Mode Button Summary (B140 Series/B064 Series)
Here is a short summary of the touch-panel buttons.
(1): Open All.
Opens all SP groups and sublevels.
(2): Close All.
Closes all open groups and sublevels and restores the initial SP mode display.
(3):
Copy Window.
Opens the copy window (copy mode) so you can make test copies. To return to the SP
mode screen, press SP Mode (highlighted) in the copy window.
(4):
SP Direct.
Enter the SP code directly with the number keys if you know the SP number, then press
. (SP Direct must be highlighted before you can enter the number. Just press SP
Direct if it is not highlighted.)
(5):
Exit.
Press twice to leave the SP mode and return to the copy window to resume normal
operation.
(6):
SPnxxx.
Press any group number to open a list of SP codes and titles for that group. For
example, to open the SP code list for SP1-nnn, press SP1XXX. If an SP has sublevels, it
is marked with a right pointing triangle.
(7):
Group.
Press to scroll the display to the previous or next group.
(8):
Page.
Press to scroll to the previous or next display in segments the size of the screen display
(page).
(9):
Line.
Press to scroll the display to the previous or next line, line by line.
(10):
Prev Page or Next Page.
Press to move the highlight on the left to the previous or next selection in the list.
Exit
SP Mode (Service)
Close All Copy Window SP DirectOpen All
X-XXX-XXX
SP2XXX
SP3XXX
SP5XXX
SP6XXX
SP7XXX
SP8XXX
SP4XXX
SP1XXX
Group
Page
Line
Page
Line
Group
21
COPY: SP1-001-001
Initial 0
Prev Page Next Page
14APR 2002 03:25
(2)(1) (3) (4) (5)
(6) (7) (8) (9)
(10)
B140S907.WMF
Rev. 05/2005
