IMAGE TRANSFER AND PAPER SEPARATION
B064 Series/B140 Series/G126 6-78 SM
6.10 IMAGE TRANSFER AND PAPER SEPARATION
6.10.1 OVERVIEW
1. Transfer Roller
2. Transfer Belt Drive Roller
3. Belt Lift Lever
4. Waste Toner Agitator
5. Waste Toner Collection Coil
6. Cleaning Blade
7. Drive Roller
8. Cleaning Roller
9. Transfer Belt
A transfer belt system transfers the image from the OPC drum to paper.
A solenoid lifts the belt against the OPC drum at the correct time.
The transfer belt system is driven by the drum motor, through a shaft and a gear.
A cleaning blade and a cleaning roller clean the surface of the transfer belt.
Easy access to the transfer belt from behind the front door allows quick removal of
paper jams.
A heater near the transfer belt unit ensures that the area around the belt is always
dry.

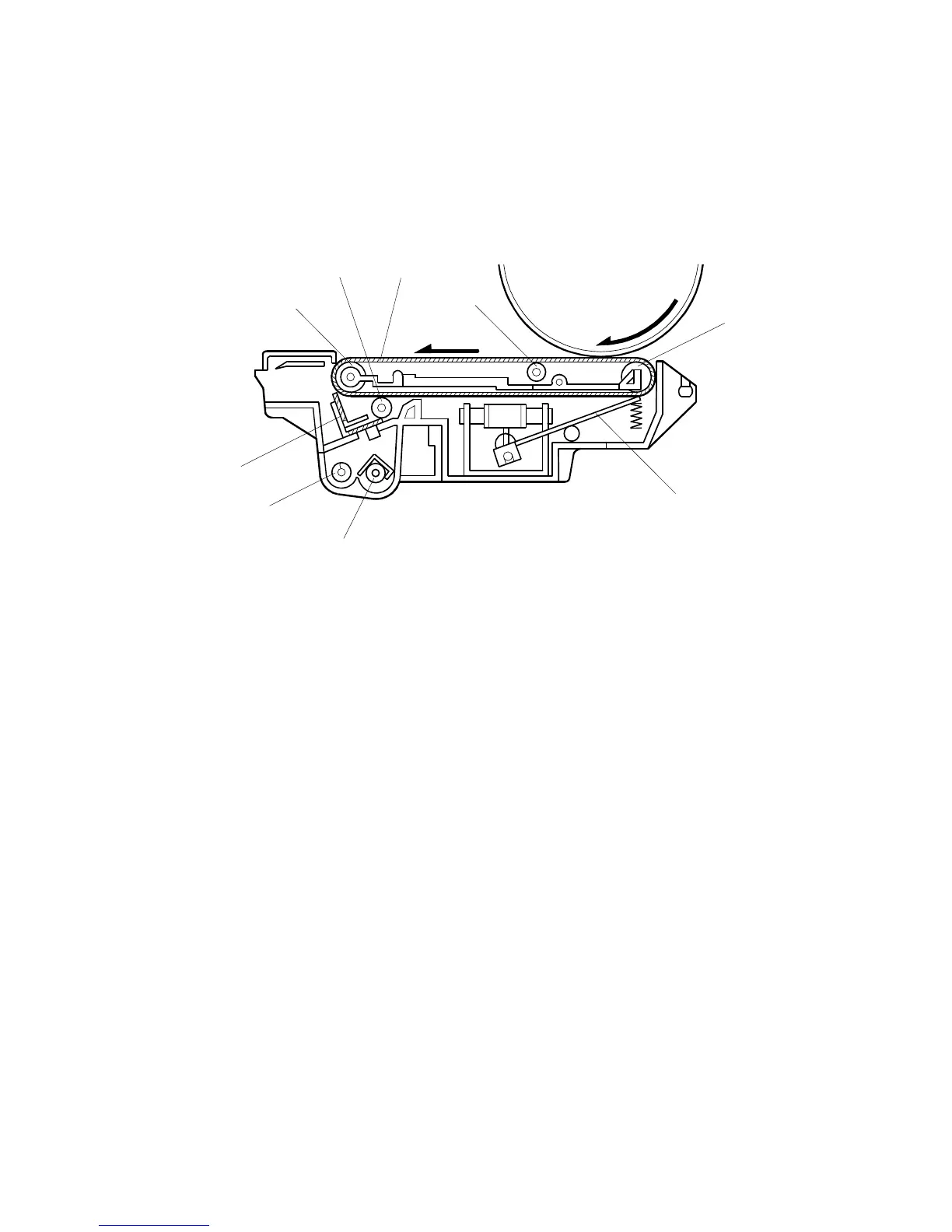

B140D959.WMF
