REPLACEMENT AND ADJUSTMENT
SM 3
B478/B513/B531
Finisher/
Jogger Unit/
Punch Unit
B478/B51
3/
B531
3.
REPLACEMENT AND ADJUSTMENT
3.1
DOOR AND COVER

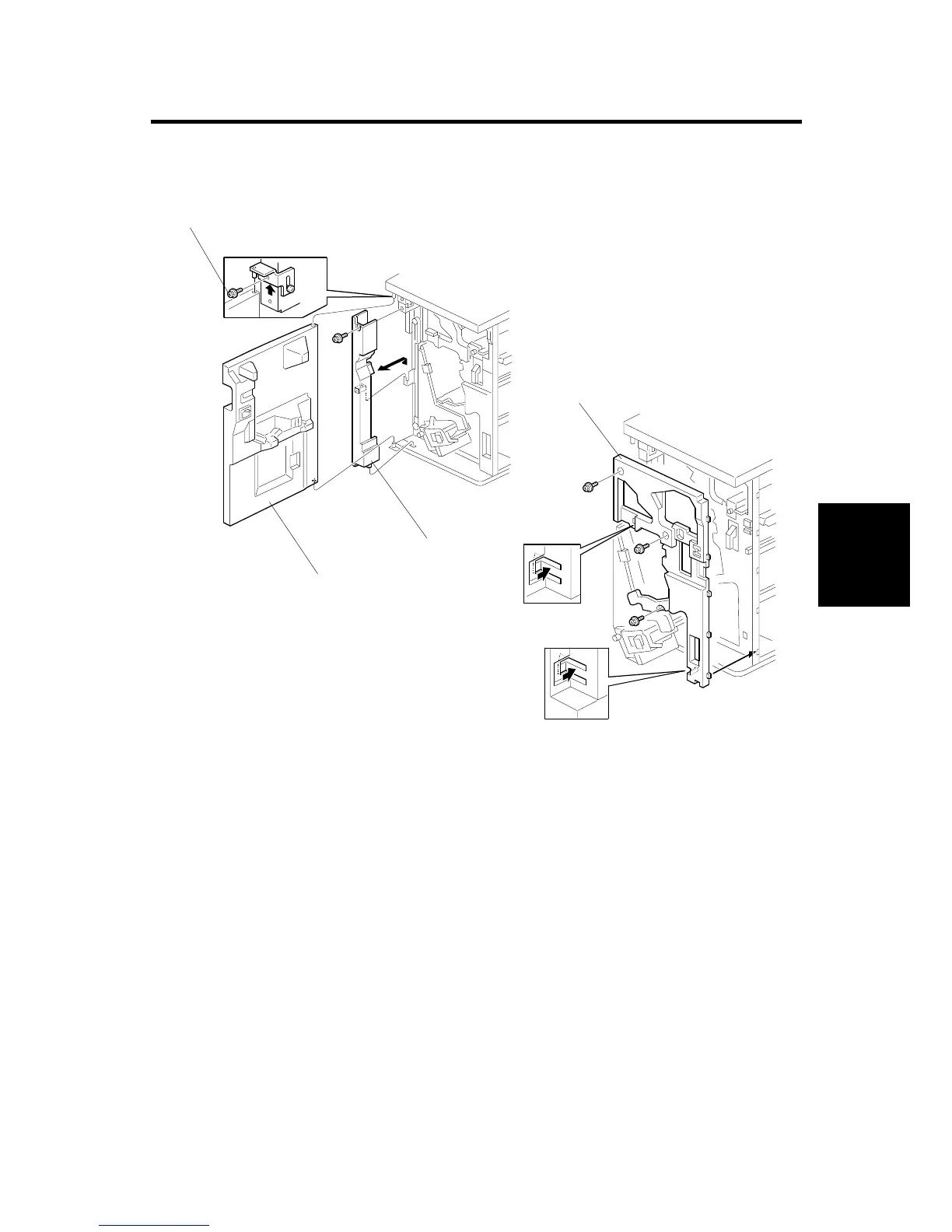

Front Door
1.
Remove the front door screw [A] (
x 1).
2.
Remove the front door [B].
Left Inner Cover
1.
Remove the front door.
2.
Remove the left inner cover [C] (
x 1).
Inner Cover
1.
Remove the inner cover [D] (
x 3).
B478R502.W
MF
B478R505.
W
MF
[B]
[D]
[A]
[C]
880
882
