FUSING UNIT
B064/B140 Series/G126 3-70 SM
3.9.8 FUSING LAMPS, HOT ROLLER, AND PRESSURE ROLLER
NOTE: If you wish to remove the pressure roller only, without removing the hot
roller and fusing lamps, do not use this procedure. Use the procedure in
the next section.

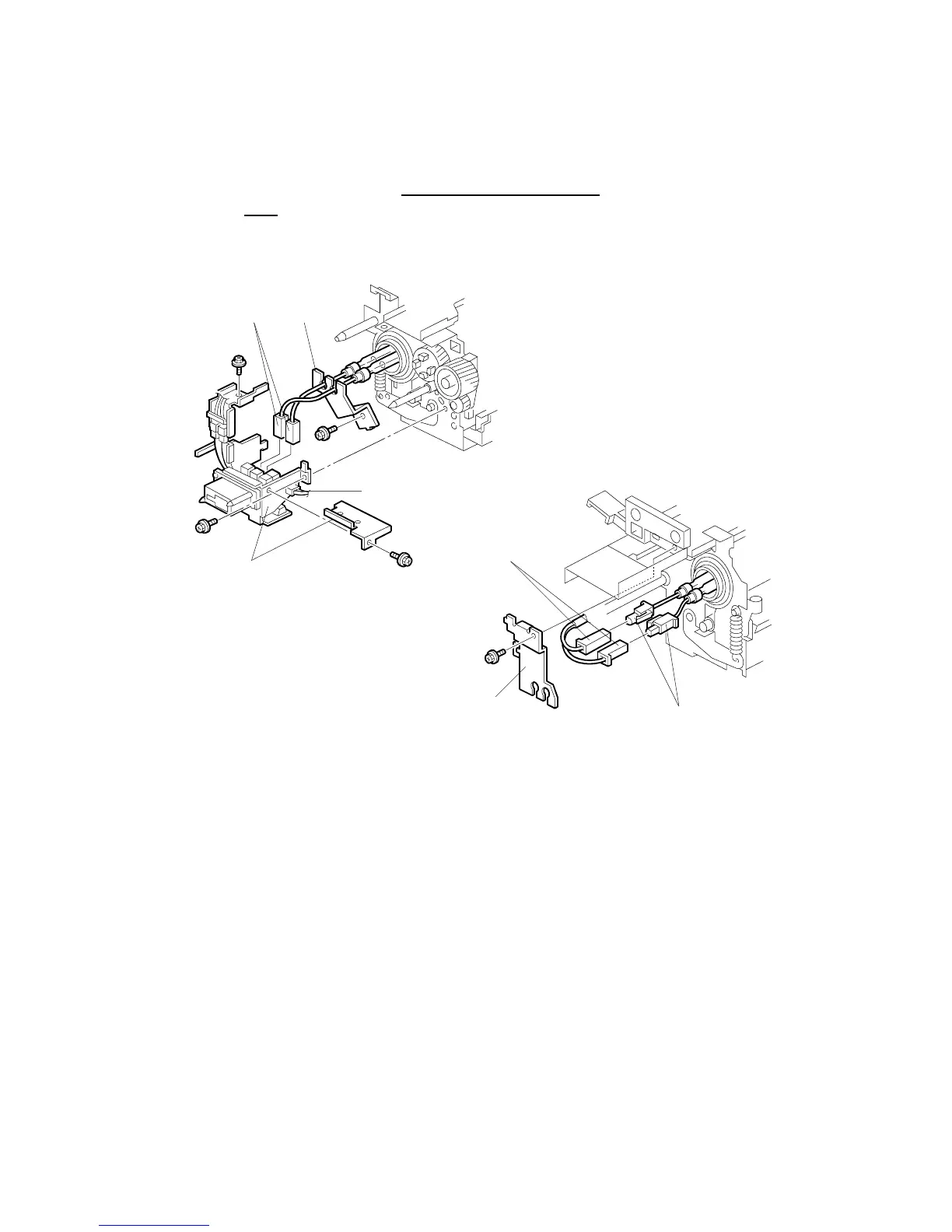

B064 Series: Fusing Lamps
Fusing unit ( 3.9.1)
[A]: Rear terminal brackets ( x 3)
[B]: Upper connectors ( x 2)
[C]: Lower connector ( x 1)
[D]: Rear fusing lamp holder ( x 1)
[E]: Fusing lamp connectors ( x 2)
[F]: Front fusing lamp holder ( x 3)
[G]: Fusing lamps
NOTE: Handle the fusing lamps carefully to prevent breaking them; avoid touching
them with bare hands.
B140R991.WMF
B140R992.WMF
[A]
[C]
[D][B]
Rear
[E]
[F]
[G]
Front
To Next Page
