MAIN MACHINE (G126)
B064 Series/B140 Series/G126 1-126 SM

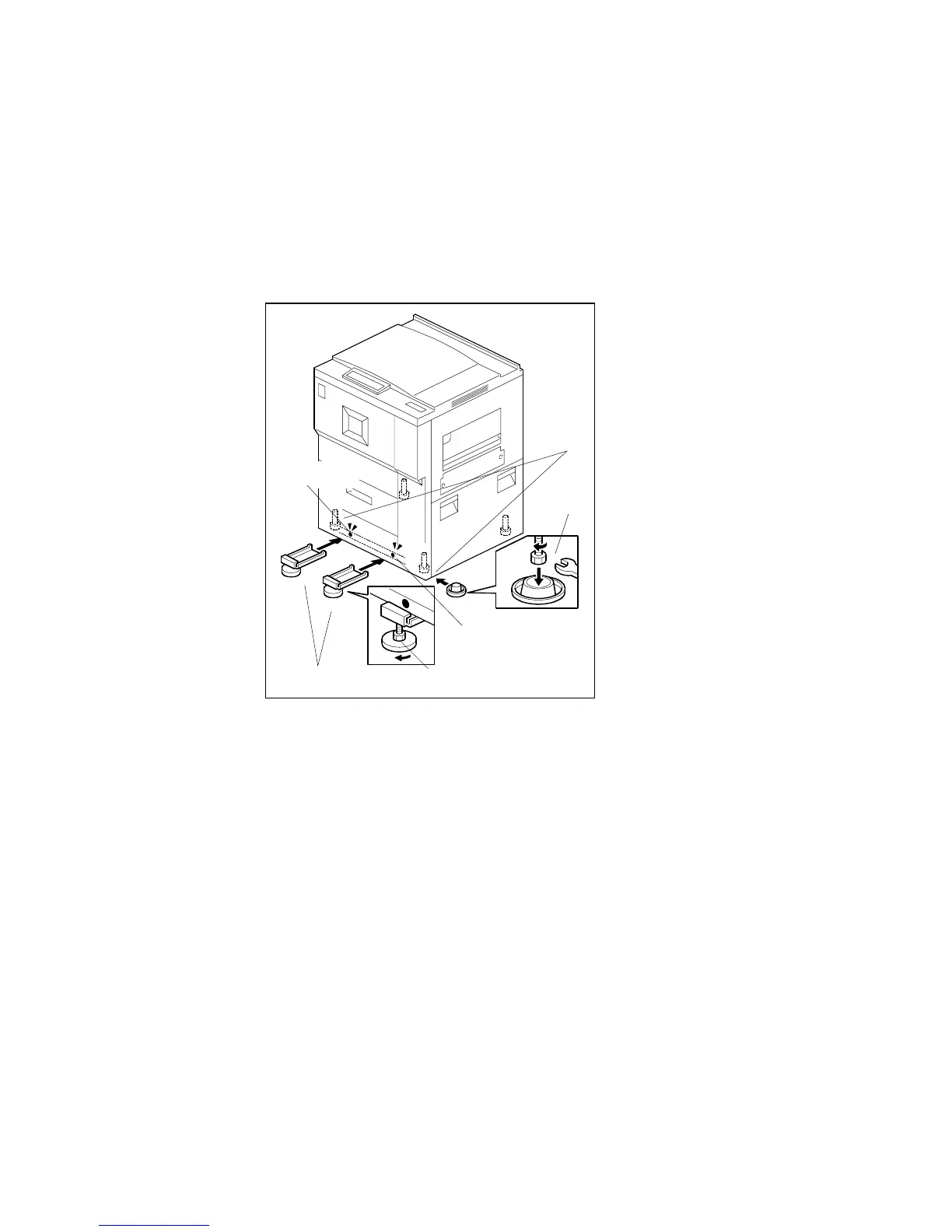

Machine Leveling
1. Set a stand [A] at each corner of the machine.
2. Place a level on the exposure glass and use a wrench to turn each nut [B] and
level the machine to ±5 mm of the horizontal.
3. Check the machine operation. With the customer, determine the best place to
attach the cleaning reminder decal.
Leveling Stopper
1. Put the 2 leveling stoppers [C] under the paper bank frame.
Put one under the 8mm hole, and the other under the 8x10mm hole.
2. While you press the leveling stopper flat against the paper bank frame, turn the
nuts [D] to increase the height of the leveling stopper.
IMPORTANT: Use a wrench to turn each nut.
3. Do Step 2 until the long part of the leveling stopper is tight against the
underside of the paper bank frame.
4. Make sure the machine does not move when you try to push it left and right.
IMPORTANT: If it moves, repeat this procedure.
[B]
[C]
[8x10mm Hole]
[8mm Hole]
[A]
[D]
Rev. 05/2005
