MFP OPTIONS: B064 SERIES
SM 1-93 B064 Series/B140 Series/G126
Installation

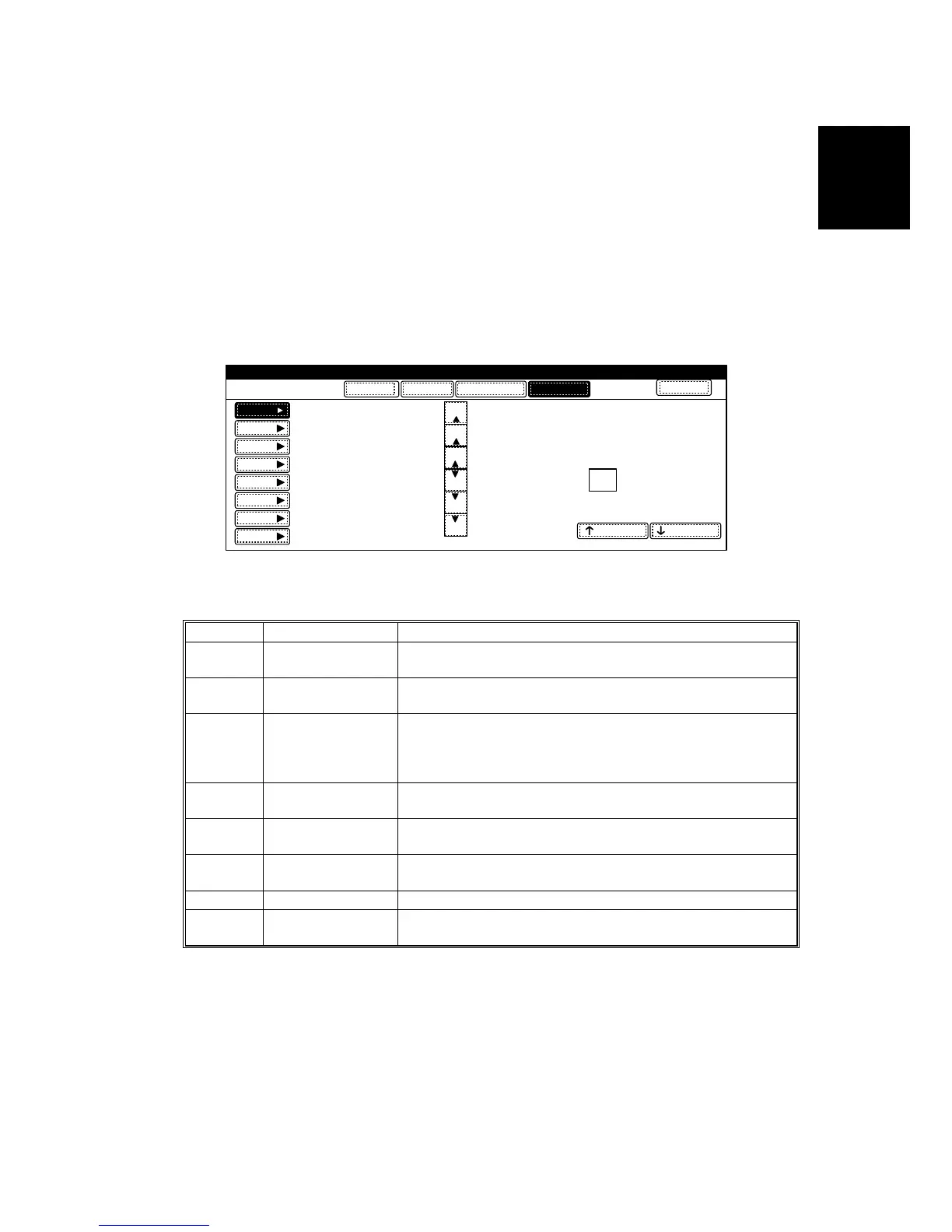

SP Mode Settings for IEEE 1394
The following SP commands can be set for IEEE 1394.
To enter the SP mode:
1. Press Clear Modes
2. On the operation panel keypad, press .
3. Hold down Clear/Stop for more than 3 seconds.
4. Press “Copy SP” on the touch-panel to open the SP command selection
screen.
5. Enter .
SP No. Name Function
5839-004 Device Name Sets the names for all the physical devices connected to
the IEEE 1394 firewire network.
5839-007 Cycle Master Enables or disables cycle master function of the IEEE 1394
standard bus.
5839-008 BCR Mode Sets the BCR (Broadcast Channel Register) setting for the
Auto Node operation for the standard IEEE1394 bus for
when IRM is not in use. Three settings are available: 00,
01, 11.
5839-009 IRM 1394a Check Determines whether an IRM check for IEEE 1394 is
conducted for the Auto Node when IRM is not used.
5839-010 Unique ID Enables the “Node_Unique_Id” setting for enumeration on
the standard IEEE 1394 bus.
5839-011 Logout Determines how successive initiator login requests are
handled during login for SBP-2.
5839-012 Login Enables or disables exclusive login for SBP-2.
5839-013 Login MAX Sets the limit for the number of logins for SBP-2. Range: 1
~ 62.
Exit
SP Mode (Service)
Close All Copy Window SP DirectOpen All
X-XXX-XXX
SP2XXX
SP3XXX
SP5XXX
SP6XXX
SP7XXX
SP8XXX
SP4XXX
SP1XXX
Group
Page
Line
Page
Line
Group
21
COPY: SP1-001-001
Initial 0
Prev Page Next Page
14APR 2002 03:25
Feed
Drum
Process
Data Log2
Scanner
Mode
Periphs
Data Log
B064I999.WMF
