PUNCH POSITION ADJUSTMENT
SM 1 B377
Punch Unit
B377
1. REPLACEMENT AND ADJUSTMENT
1.1 PUNCH POSITION ADJUSTMENT
To adjust the position of the punch holes in the paper feed direction, use SP6113
(Punch Hole Adjustment).
The punch position can be adjusted by up to 4 mm using combinations of the 3
spacers provided with the finisher. To adjust the horizontal position of the holes,
use the spacers provided with the punch unit.

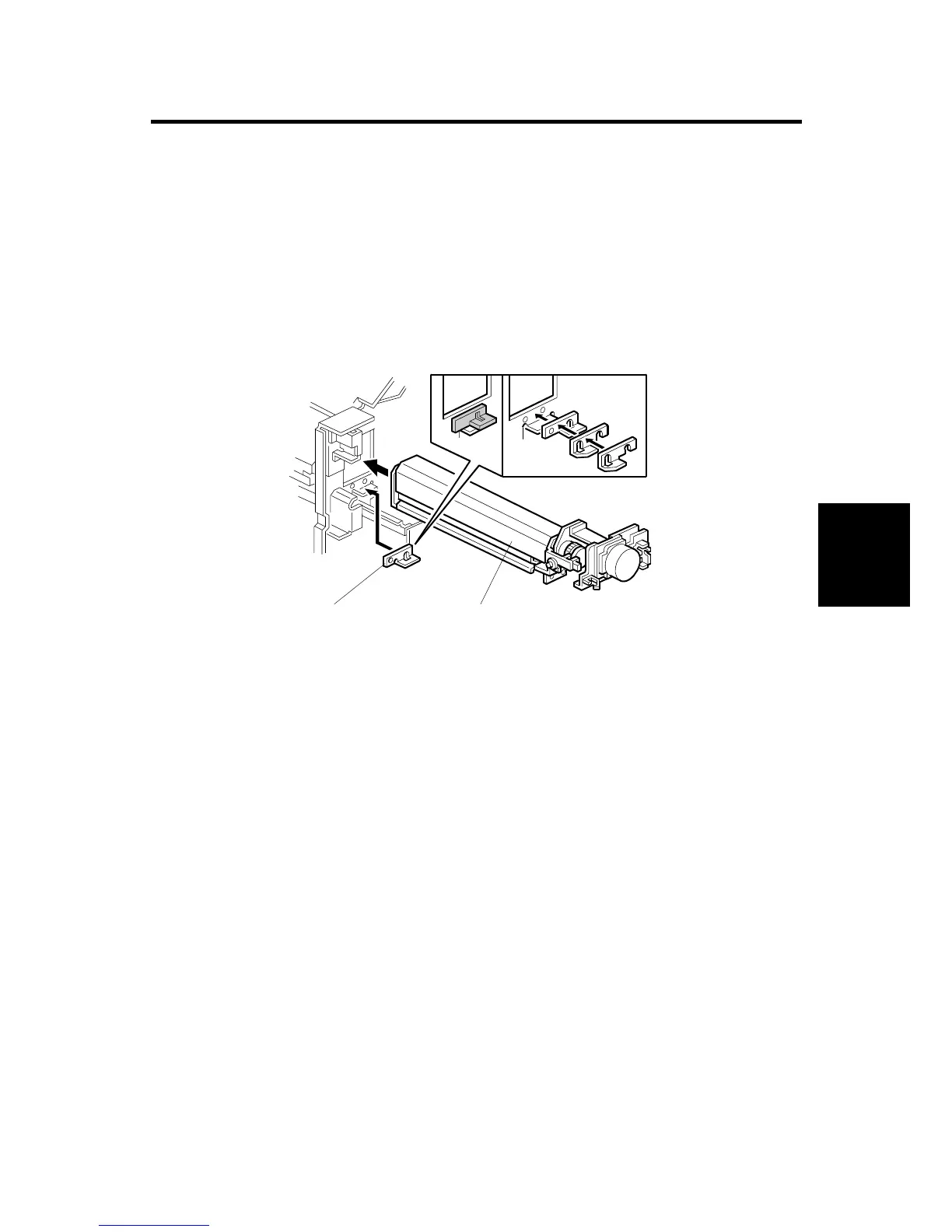

1. Rear cover ( x 4)
2. Punch unit [A] ( x 3, x 5)
3. Spacers [B]
B377R119.WMF
[A][B]
