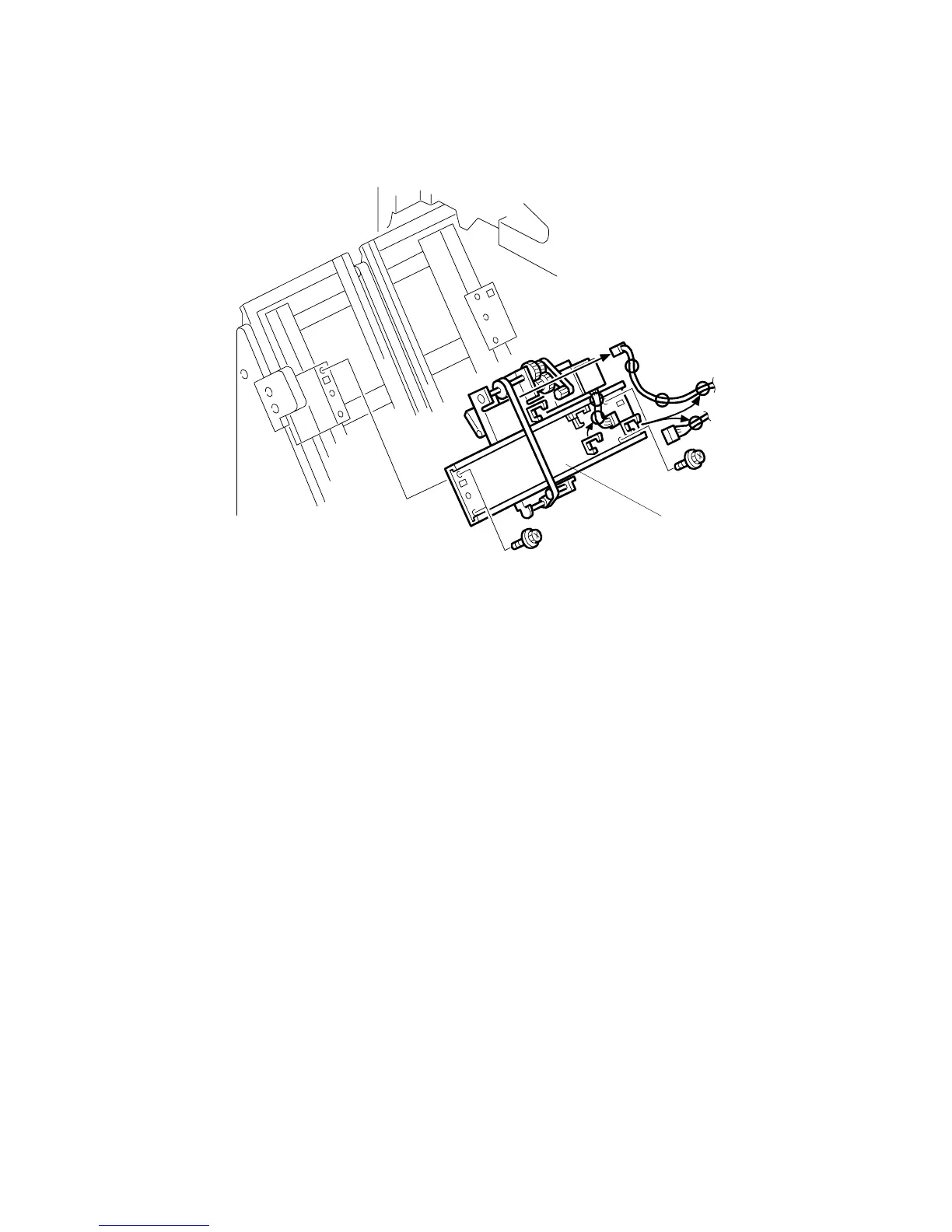

REPLACEMENT AND ADJUSTMENT
B706 24
SM
3.8.2 Z-FOLD
JOGGER
UNIT
1.
Open the front door and pull
out the stapler tray unit.
2.
Remove the Z-fold jogger unit cover (
x 2).
3.
Remove the Z-fold jogger unit [A] (
x 4,
x 4,
x 2).
B706R103.
W
MF
[A]
