DEVELOPMENT AND TONER SUPPLY
SM 6-65 B064 Series/B140 Series/G126
Detailed
Descriptions

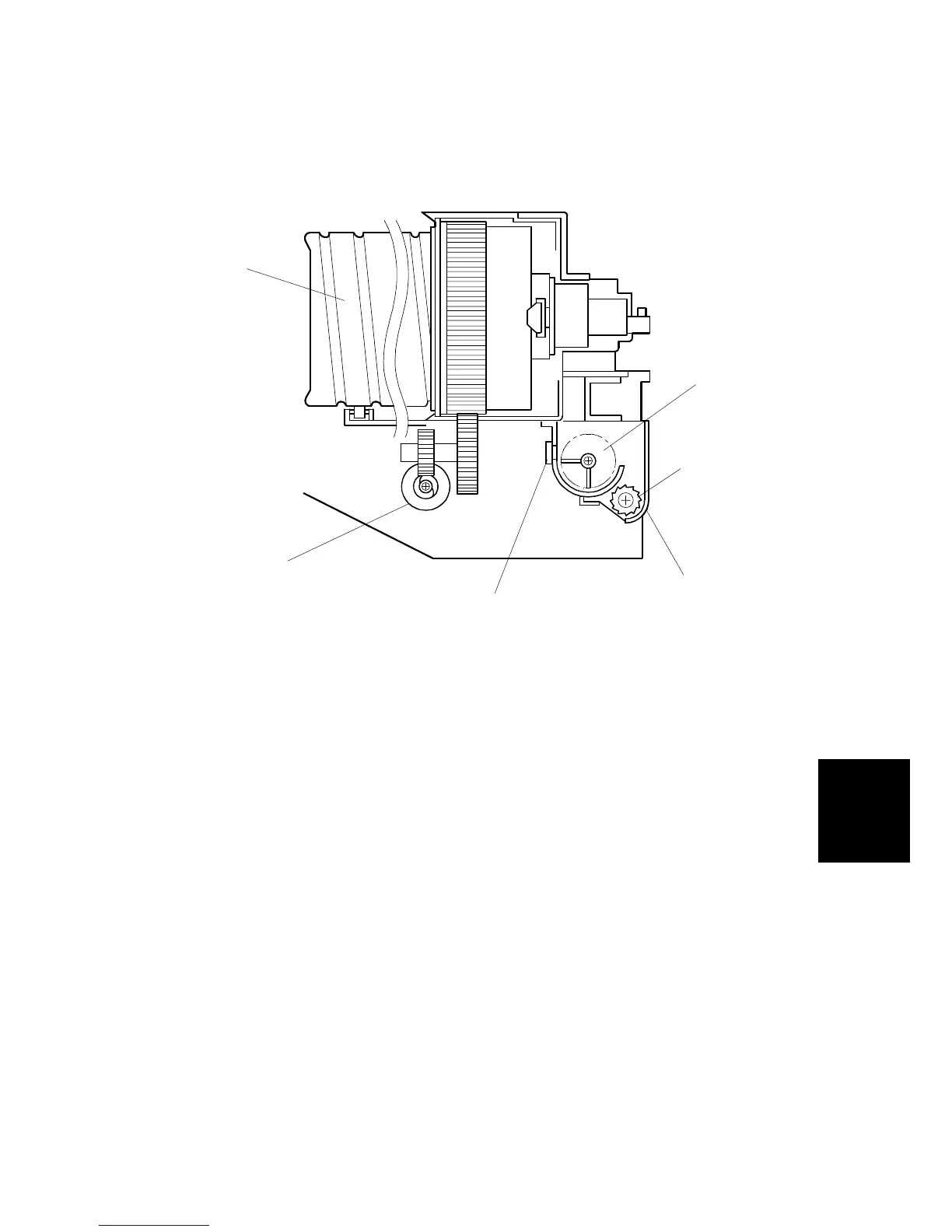

Toner Supply
1. Toner Supply Motor
2. Toner Bottle
3. Toner Agitator
4. Toner Supply Roller
5. Toner Hopper
6. Toner End Sensor
The toner supply roller carries toner from front to back in the hopper and into the
development unit.
The toner supply motor rotates the toner bottle to supply toner. The cap of the
bottle seals itself immediately when the toner bottle is removed from its holder.
A toner recycling system separates waste toner from toner that can be re-used.
Reusable toner is carried to the development unit, and waste toner is sent to the
waste toner bottle.
B140D946.WMF
1
2
3
4
5
6
To Next Page
