JOGGER UNIT (B513)

SM 1-75 B064 Series/B140 Series/G126

Installation

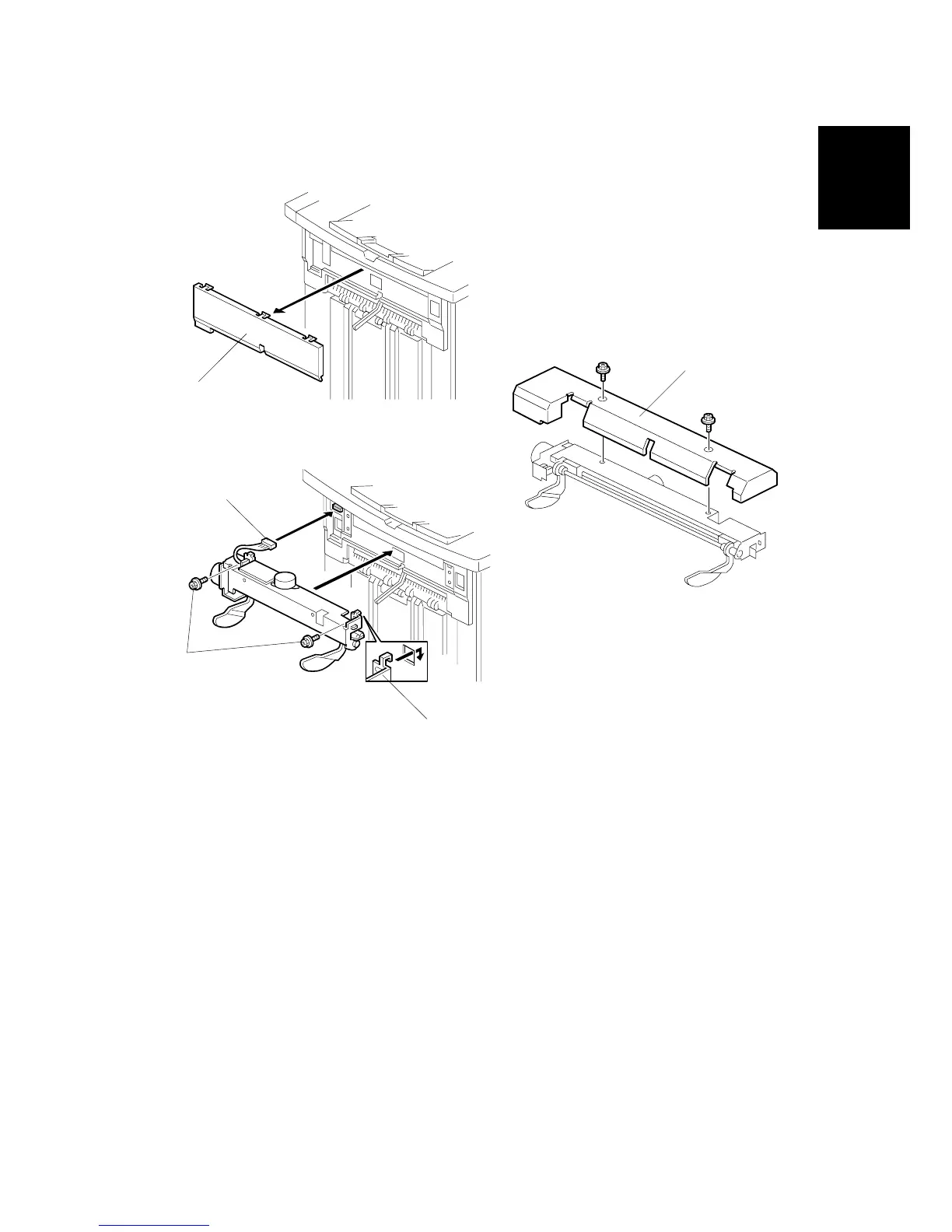

1.14.2 INSTALLATION

1. Turn the main machine switch off and disconnect the finisher from the main

frame.

2. Use the flat head of a screw driver to remove the left upper cover [A] from the

finisher and discard it.

3. Remove the cover plate [B] from the jogger unit ( x 2). Save the screws.

4. With the jogger unit connector on the left side, hook the frame of the jogger unit

[C] into the holes on the left and right side of the finisher frame.

5. On the left side, fasten the connector [D] to the socket ( x 1).

6. On the left and right side, attach the jogger unit frame to the side of the finisher

with the screws [E] provided ( x 2).

7. Re-attach the jogger unit cover to its frame with the screws removed in step 2

( x 2).

B513I001.WMF

B513I002.WMF

B513I003.WMF

[A]

[B]

[C]

[D]

[E]
