ADF (B140 SERIES/B064 SERIES ONLY)

SM 6-13 B064 Series/B140 Series/G126

Detailed

Descriptions

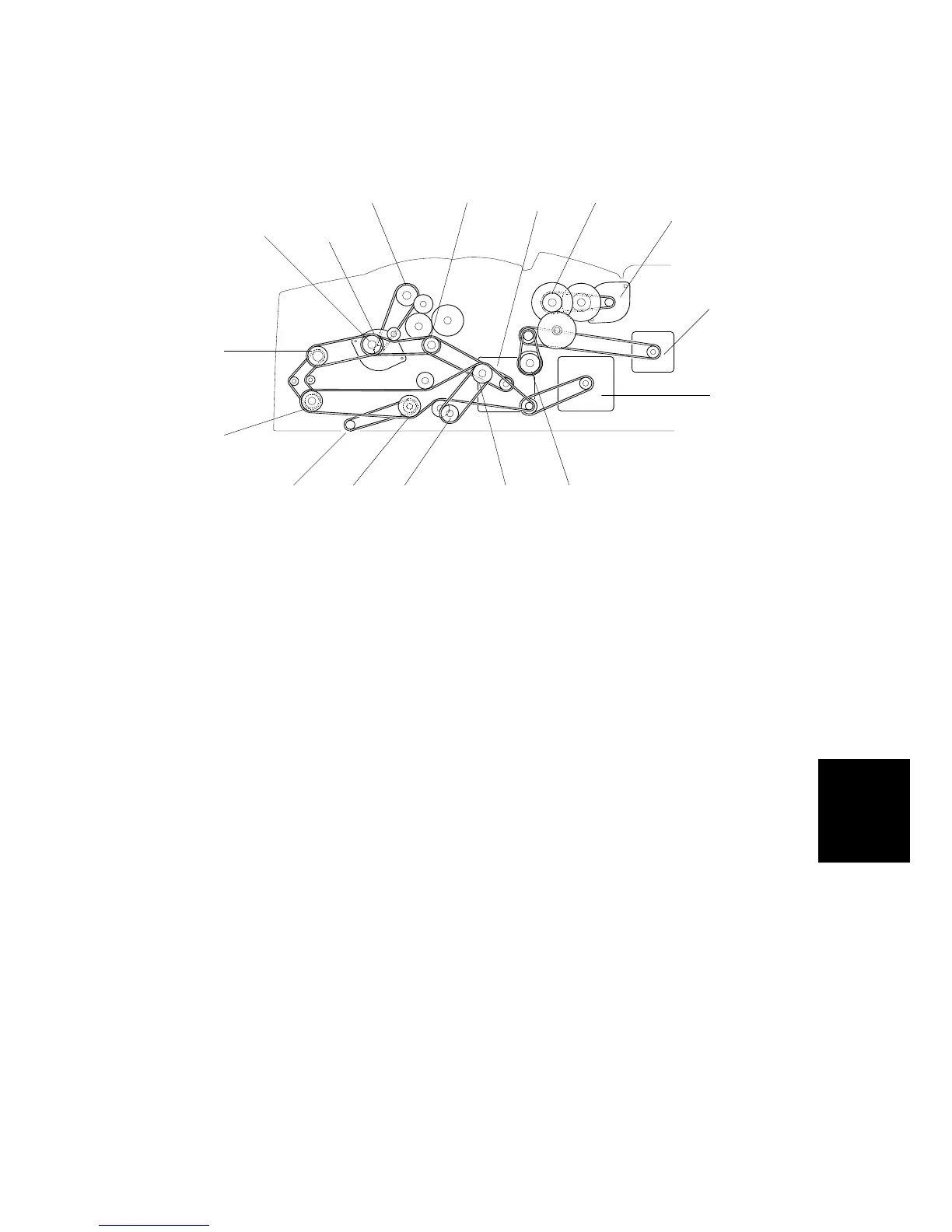

6.4.2 ADF DRIVE LAYOUT

1. Pick-up Roller Lift Motor

2. Feed Motor

3. Bottom Plate Motor

4. Transport Motor

5. Exit Motor

Pick-up roller lift motor: Drives the pick-up roller lift mechanism through gear [A].

Feed motor: Drives the following:

• Pick-up roller and feed belt drive gear [B]

• Entrance roller [C] and 1st transport roller [D]

Bottom plate motor: Drives the bottom plate lift mechanism through gear [E].

Transport motor: Drives the following:

• Pre-scanning roller [F]

• Scanning roller [G]

• 2nd transport roller [H]

• White platen roller [ I ]

• 3rd transport roller [J]

Exit motor: Drives the exit roller [K].
