DETAILS
SM 19 B660
Z-Folding Unit
B660

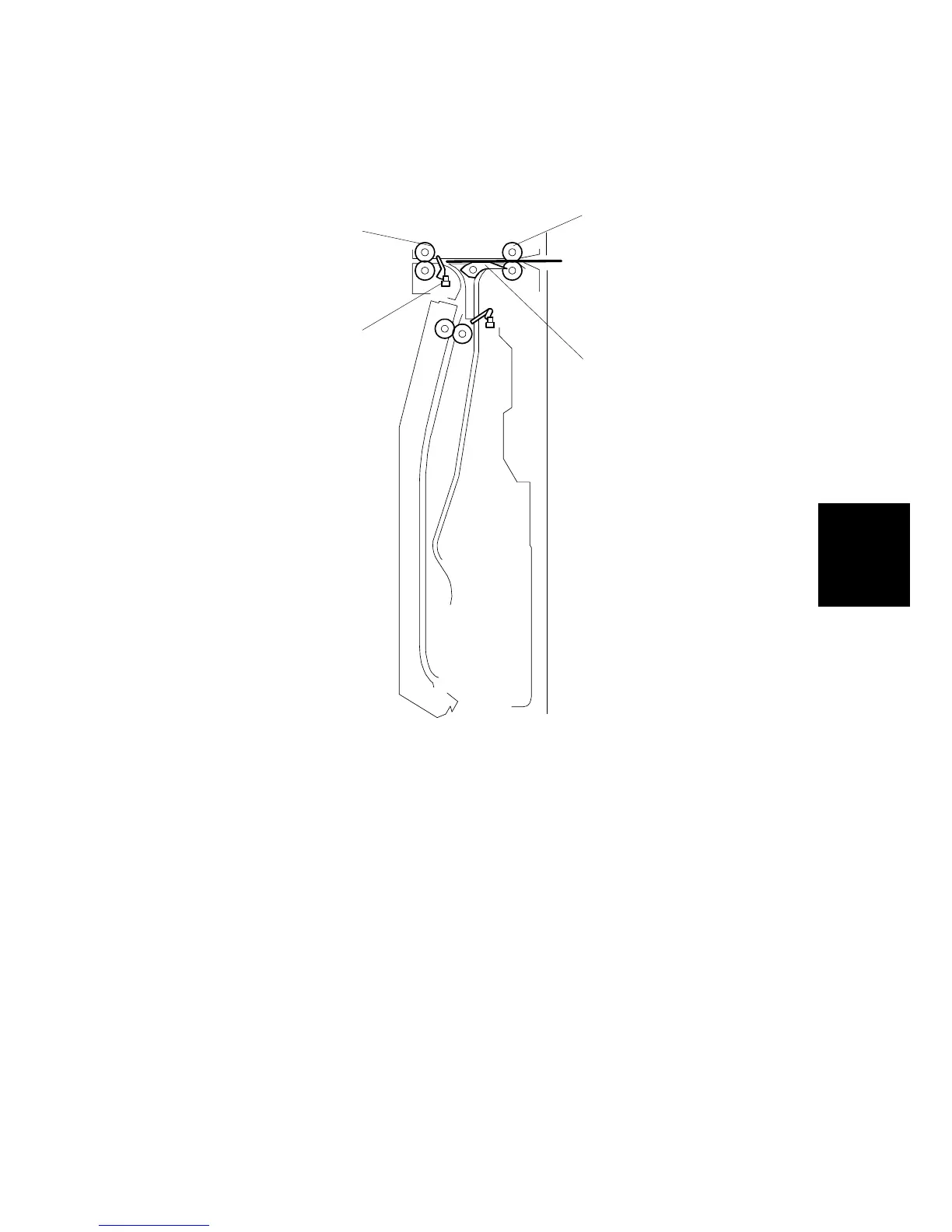

6.2 Z-FOLDING UNIT PAPER PATH
6.2.1 PAPER PATH WITH NO FOLDING
The feed rollers [1] feed the paper from the main machine into the Z-folding unit.
If Z-folding was not used for the job, the sheet feeds above the closed junction gate
[2].
The upper exit sensor [3] detects the leading and trailing edge of the unfolded
sheet.
The upper exit rollers [4] feed the unfolded sheet out of the Z-folding unit and into
the finisher.
B660D901.WMF
[1]
[2]
[3]
[4]
